ACI AFS-222-112

Name: ACI AFS-222-112
Brand: ACI
SKU: CS6285364
Availability: OutOfStock

SKU: CS6285364MPN: AFS-222-112Alternate Part #: 108816

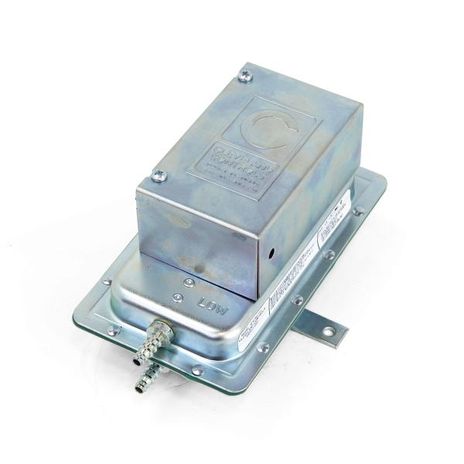

Differential Pressure Switch, 0.05 to 12.0 inWC, SPDT, Auto Reset, ¼” Barbed Fitting

Product Details

Differential Pressure Switch, 0.05 to 12.0 inWC, SPDT, Auto Reset, ¼” Barbed Fitting

Product Configuration

Span	0.05 to 12.0 inWC
Fitting Type	Barb

Product Family Specifications

Media Types	AFS-222/AFS-262: Air or combustion by-products that will not degrade silicone AFS-460: Air
Product Weight	1.2 lbs (0.544 kg)
Life Expectancy	AFS-222/AFS-262: 100,000 cycles minimum @ ½ psi (0.03 Bar) max pressure / cycle \& max load AFS-460: 6,000 cycles minimum @ ½ psi (0.03 Bar) max pressure / cycle \& max load
Set Point Range	AFS-222: 0.05 +/- 0.02” to 12.0” wc AFS-262: 0.07” to 2.0” wc AFS-460: 0.40 +/- 0.06” to 12“ wc
Agency Approvals	UL, CUL, FM, CSA, CE, ISO 9001: 2008
Maximum Pressure	0.5 PSI (0.03 Bar)
Conduit Knockouts	Accepts ½” Conduit (⅞” (22.3 mm) opening)
Enclosure Material	Galvanized Steel
Mounting Direction	Any vertical plane
Contact Arrangement	AFS-222/AFS-262: SPDT w/ Automatic Reset AFS-460: SPST-NC w/ Manual Reset AFS-460-137: DPDP w/ Manual Reset
Input Pressure Range	AFS-222: 0.05 +/- 0.02” to 12” wc AFS-262: 0.05 +/- 0.02” to 2.0” wc AFS-460: 0.40 +/- 0.06” to 12.0” wc
Contact (Load) Rating	AFS-222/AFS262: 300 VA pilot duty @ 115 to 277 VAC, 60 Hz; 15A non-inductive to 277 VAC, 60 Hz AFS-460: 15A @ 125, 250, or 277 VAC / ½A @ 125 VDC, ¼A @ 250 VDC / ¼ hp @ 125 VAC, ½ hp @ 250 VDC AFS-460-137: 8A @ 250 VAC
Dimensions (H x W x D)	6.25” x 4.46” x 3.18” (158.8 mm x 113.3 mm x 80.8 mm)
Electrical Connections	Screw type terminal with cup washers
Sample Line Connections	Accepts ¼” OD rigid or semi-rigid metallic tubing using integral compression fitting, ferrule and nut “-112 Option”: Includes two barbed fittings that accepts ¼” flexible plastic tubing
Operating Humidity Range	10 to 95% RH, non-condensing
Operating Temperature Range	-40 to 180ºF (-40 to 82ºC)
Approximate Switching Differential	Progressive, increasing from 0.02 +/- 0.01” wc @ minimum set point to 0.8” wc @ maximum set point
Field Adjustable “Operate” Range	AFS-222: 0.07” to 12.0” wc AFS-262: 0.07” to 2” wc AFS-460: 0.46” to 12” wc
Field Adjustable “Release” Range	AFS-222: 0.04” to 11.2” wc AFS-262: 0.04” to 1.9” wc AFS-460: 0.46”w.c. to 11.2” w.c.
