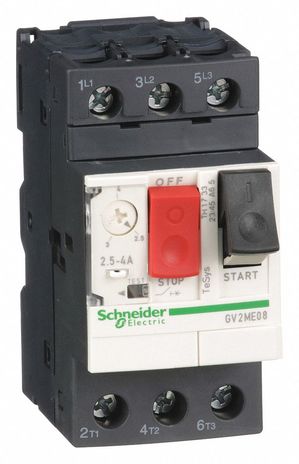

Square D GV2-ME08

MANUAL STARTER 600VAC 4AMP IEC

TeSys GV2 Manual Starter and Thermal Magnetic Circuit Protector w/ Push Buttons and Screw Clamp Terminals (2.5-4A, 690V, 3P)

Specifications:

• Range: TeSys
• Product Name: TeSys GV2
• Device Application: Motor
• Trip Unit Technology: Thermal-Magnetic
• Poles: 3
• Network Type: AC
• Utilisation Category: AC-3 IEC 60947-4-1, Category A IEC 60947-2
• Network Frequency: 50/60 Hz IEC 60947-4-1
• Fixing Mode: 35 mm Symmetrical DIN Rail Clipped, Panel Screwed with Adaptor Plate)
• Operating Position: Any Position
• Motor Power: 1.1 kW 400/415 V AC 50/60 Hz, 1.5 kW 400/415 V AC 50/60 Hz, 1.5 kW 500 V AC 50/60 Hz, 3 kW 690 V AC 50/60 Hz, 2.2 kW 500 V AC 50/60 Hz, 2.2 kW 690 V AC 50/60 Hz
• Breaking Capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
• [Ics] Rated Service Short-Circuit Breaking Capacity: 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2
• Control Type: Push-Button
• Line Rated Current: 4 A
• Thermal Protection Adjustment Range: 2.5…4 A
• Magnetic Tripping Current: 51 A
• [Ue] Rated Operational Voltage: 690 V AC 50/60 Hz IEC 60947-2
• [Ui] Rated Insulation Voltage: 690 V AC 50/60 Hz IEC 60947-2
• [Ith] Conventional Free Air Thermal Current: 4 A IEC 60947-4-1
• [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-2
• Power Dissipation Per Pole: 2.5 W
• Mechanical Durability: 100000 cycles
• Electrical Durability: 100000 cycles AC-3 440 V
• Maximum Operating Rate: 25 cyc/h
• Rated Duty: Continuous IEC 60947-4-1
• Connections - Terminals: Screw Clamp Terminals 2 0.00…0.01 in² (1…6 mm²) Solid, Screw Clamp Terminals 2 0.00…0.01 in² (1.5…6 mm²) Flexible without Cable End, Screw Clamp Terminals 2 0.00…0.01 in² (1…4 mm²) Flexible with Cable End
• Tightening Torque: 15.05 lbf.in (1.7 N.m) Screw Clamp Terminals
• Suitability for Isolation: Yes IEC 60947-1
• Phase Failure Sensitivity: Yes IEC 60947-4-1
• Ambient Air Temperature for Operation: -4…140 °F (-20…60 °C)
• Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
• Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1
• Operating Altitude: 6561.68 ft (2000 m)
• Warranty: 18 Months
