Square D GV2ME04

SKU: CS338350MPN: GV2ME04

Motor circuit breaker, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control

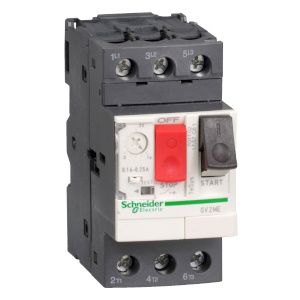

Square D GV2ME04

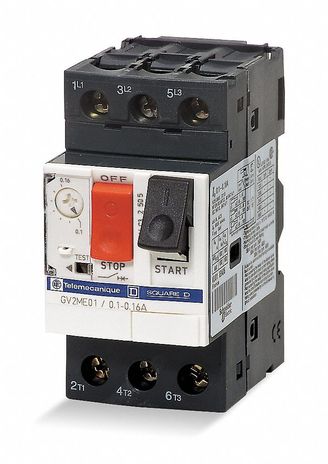

Square D GV2ME01, GV2ME02, GV2ME04
Square D GV2ME04
Square D GV2ME01, GV2ME02, GV2ME04
$209.86
Unit
Available on backorder
remove
add

Product Details

TESYS GV2 CIRCUIT BREAKER

  • Trip unit technology : Thermal-magnetic
  • Poles description : 3P
  • Network type : AC
  • Control type : Push-button
  • Rated current : 0.63 A
  • Thermal protection adjustment range : 0.4...0.63 A
  • Magnetic tripping current : 8 A
  • Rated operational voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2
  • Rated impulse withstand voltage : 6 kV conforming to IEC 60947-2
  • Power dissipation per pole : 2.5 W

Attributes

Ambient Air Temperature For Storage -40-80 °C
Control Type push-button
Device Application motor protection
Device Short Name GV2ME
Magnetic Tripping Current 8-8 A
Maximum Operating Rate 25 cyc/h
Mechanical Durability 100000 cycles
Network Type AC
Poles Description 3P
Power Dissipation Per Pole 2.5 W
Product Certifications CCC# #UL# #CSA# #EAC# #ATEX# #BV# #LROS (Lloyds register of shipping)# #UKCA# #DNV-GL# #RINA
Product Name TeSys GV2# #TeSys Deca
Product Or Component Type motor circuit breaker
Range TeSys Deca
Range Of Product TeSys GV2
Standards EN/IEC 60947-2# #EN/IEC 60947-4-1
Trip Unit Technology thermal-magnetic

Specifications

SKUCS338350
MPNGV2ME04
