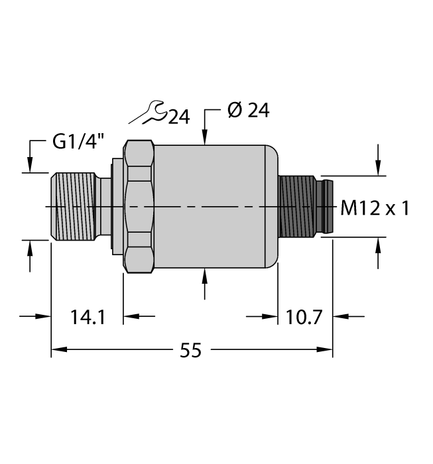

Turck PT1R-1004-IOL-H1141
SKU: CS5977781MPN: PT1R-1004-IOL-H1141Alternate Part #: 100017804UPC/EAN: 4047101522297
$294.11
UnitAvailable on backorder
Product Details
Pressure Transmitter
With 2 Switching Outputs and IO-Link
- Ceramic measuring cell
- Compact and robust design
- Excellent EMC properties
- Pressure range 0…1 bar rel.
- 18…33 V DC
- NO/NC contact, 2 × PNP/NPN outputs, IO-Link
- Process connection G¼″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
- Connector device, M12 × 1
Attributes
| Ambient Temperature | -30…+85 °C |
| Approvals | CE, Metrological certification (RUS), cULus |
| Communication Protocol | IO-Link |
| Customs Tariff Number | 90262020000.0000 |
| Design | Without display |
| Ecl Ss Code V5 1 4 | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | 2 × switching output |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Medium Temperature | -40…+125 °C |
| Operating Voltage | 18…33 VDC |
| Pressure Range Bar | 0…1 bar |
| Pressure Range Psi | 0…14.5 psi |
| Pressure Transducer Material | Ceramic Al₂O₃ |
| Pressure Type | Relative pressure |
| Process Connection | G¼″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring |
| Protection Class | IP67 |
Specifications
| SKU | CS5977781 |
|---|---|
| MPN | PT1R-1004-IOL-H1141 |
| Alternate Part # | 100017804 |
| UPC/EAN | 4047101522297 |
