Turck RI-10SA1Z4-4A1024-H1181

SKU: CS5977451MPN: RI-10SA1Z4-4A1024-H1181Alternate Part #: 200006477

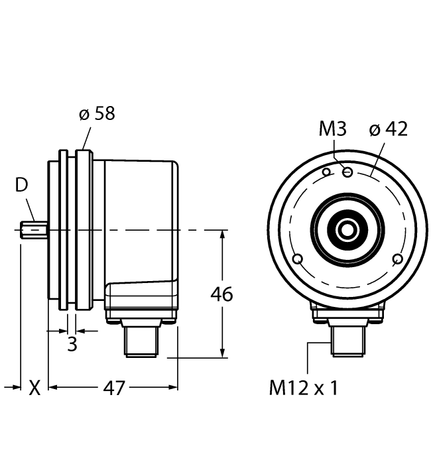

Turck RI-10SA1Z4-4A1024-H1181
$543.75
Unit
Available on backorder
remove
add

Product Details

Incremental Shaft Encoder

Industrial Line

  • Servo flange, Ø 50,8mm
  • Solid shaft, Ø ⅜” x ⅝”
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5 VDC
  • Male connector, M12 x 1 , 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution

Attributes

Ambient Temperature -40…+85 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector, M12 × 1
Encoder Line Industrial-Line
Flange Diameter Ø  50.8 mm
Flange Type Synchro flange
Housing Material Die-cast zinc
Output Function RS422, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Shaft IP67
Resolution Incremental 1024  ppr
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS5977451
MPNRI-10SA1Z4-4A1024-H1181
Alternate Part #200006477
