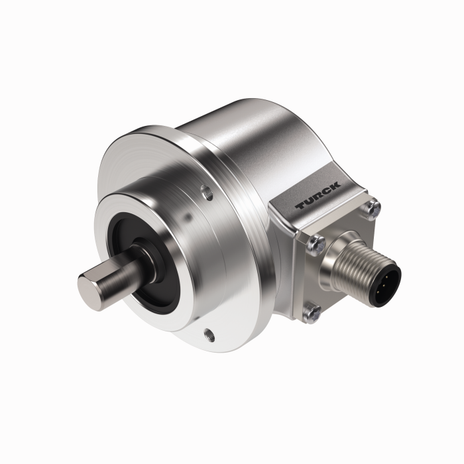

Turck RI-10S10C-4B1000-H1181
SKU: CS5504392MPN: RI-10S10C-4B1000-H1181Alternate Part #: 100041861
$543.75
UnitAvailable on backorder
Product Details
Incremental Shaft Encoder
Industrial Line

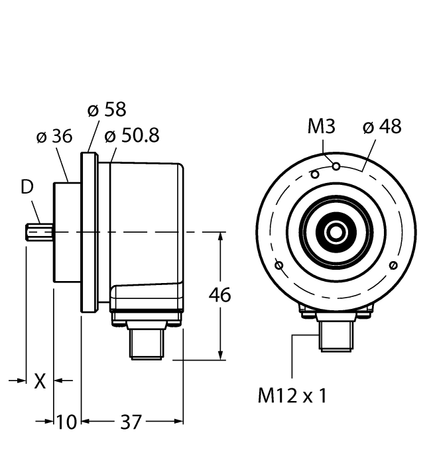

- Clamping flange, Ø 58 mm
- Solid shaft, Ø 10 mm × 20 mm
- Optical measuring principle
- Shaft material: stainless steel
- Protection class IP67 on housing and shaft side
- ‐40…+85 °C
- Max. 6000 rpm (continuous operation 3000 rpm)
- 5…30 VDC
- Male connector, M12 x 1 , 8-pole
- RS422 with inverted signals
- Pulse frequency max. 300 kHz
- 1000 pulses per revolution
Attributes
| Ambient Temperature | -40…+85 °C |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 58 mm |
| Flange Type | Clamping flange |
| Housing Material | Die-cast zinc |
| Operating Voltage | 5…30 VDC |
| Output Function | RS422/TTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Resolution Incremental | 1000 ppr |
| Shaft Diameter D Mm | 10 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS5504392 |
|---|---|
| MPN | RI-10S10C-4B1000-H1181 |
| Alternate Part # | 100041861 |
