All ProductsTurck

Turck RI-10SA1R-2K3600-10MIL/N29

SKU: CS5977202MPN: RI-10SA1R-2K3600-10MIL/N29Alternate Part #: 200006486
Turck RI-10SA1R-2K1024-10MIL/N29/N40, RI-10SA1R-2K1200-6MIL/N35, RI-10SA1R-2K3600-10MIL/N29
$543.75
Unit
Available on backorder
remove
add

Product Details

Incremental Shaft Encoder

Industrial Line

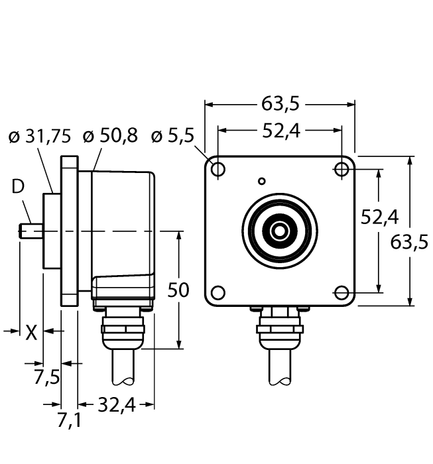

  • Square flange, Ø 63.5 mm
  • Solid shaft, Ø ⅜” x ⅝”
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector MIL, 10-pole
  • Push-pull 7272, with inverted signals
  • Pulse frequency max. 300 kHz
  • 3600 pulses per revolution

Attributes

Ambient Temperature -40…+85 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector
Encoder Line Industrial-Line
Flange Diameter Ø  63.5 mm
Flange Type Synchro flange
Housing Material Die-cast zinc
Operating Voltage 5…30 VDC
Output Function Push-Pull 7272, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Shaft IP67
Resolution Incremental 3600  ppr
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS5977202
MPNRI-10SA1R-2K3600-10MIL/N29
Alternate Part #200006486
