Turck RI-10SA1R-2K2500-H1181
SKU: CS3832366MPN: RI-10SA1R-2K2500-H1181Alternate Part #: 1545734
1545734 - INCREMENTAL
$543.75
UnitAvailable on backorder
Product Details
Incremental Shaft Encoder
Industrial Line

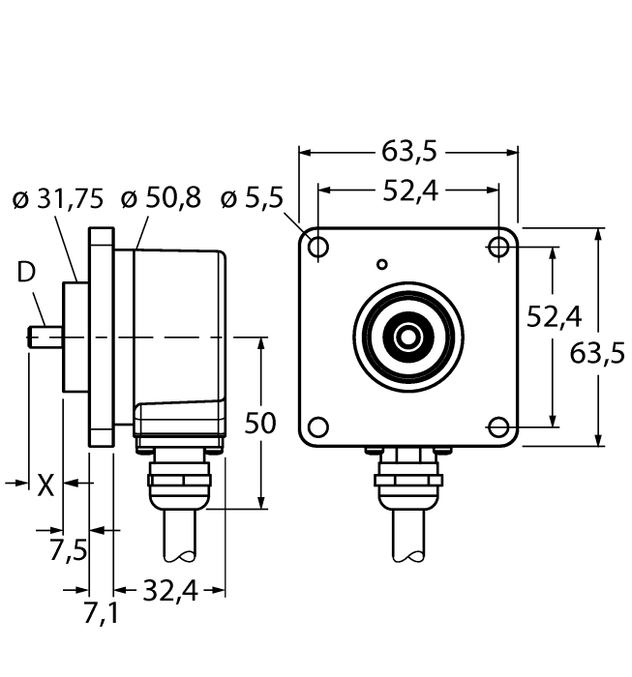

- Square flange, Ø 63.5 mm
- Solid shaft, Ø ⅜” x ⅞”
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP67 on housing and shaft side
- ‐40…+85 °C
- Max. 6000 rpm (continuous operation 3000 rpm)
- 5…30 VDC
- Male connector, M12 x 1 , 8-pole
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
Attributes
| Ambient Temperature | -40…+85 °C |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 63.5 mm |
| Flange Type | Rectangular flange |
| Housing Material | Die-cast zinc |
| Operating Voltage | 5…30 VDC |
| Output Function | Push-Pull 7272, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS3832366 |
|---|---|
| MPN | RI-10SA1R-2K2500-H1181 |
| Alternate Part # | 1545734 |
You may also like
Turck RI-10SA1R-2K2500-10MIL
$543.75UnitTurck RI-10SA1R-2B1000-H1181
$543.75UnitTurck RI-10SA1R-2B342-H1181
$543.75UnitTurck RI-10SA1R-2K5000-H1181
$543.75Unit

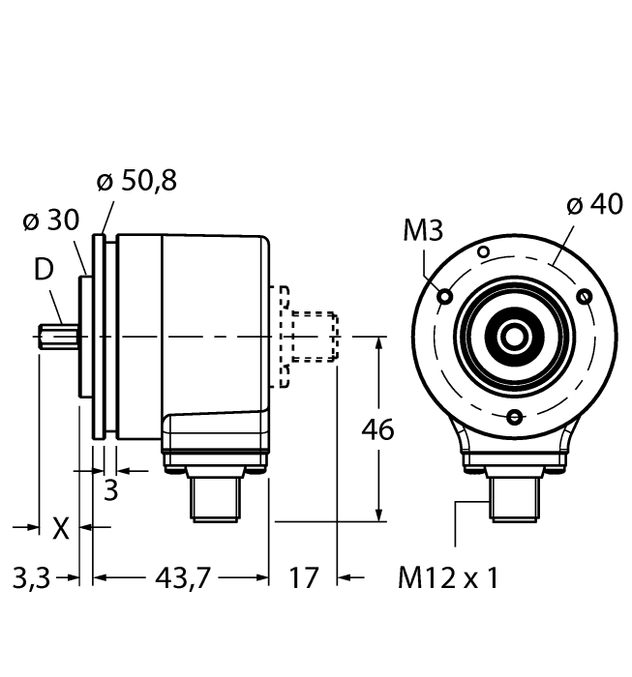

Turck RI-10SA1Z2-2K2500-H1181
