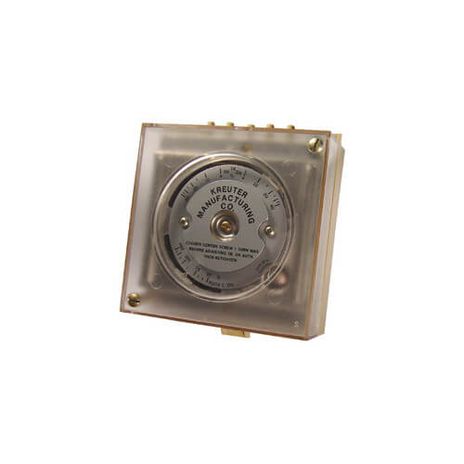

KMC CCC-1001

Dual Input Receiver Controller w/ Remote Setpoint Adjustment (Low Volume)

The KMC CCC-1001 Receiver Controller is a pneumatic proportional controller designed for use with pneumatic transmitters, or 3 to 15 psi (21 to 103 kPa) pneumatic devices, to control valves, and actuators in HVAC systems.

The CCC-1001’s single or dual inputs accept 3 to 15 psi (21 to 103 kPa) signals. Field selectable proportional band direct or reverse action, setpoints, and an optional remote setpoint adjustment add extra flexibility. The unit’s authority is adjustable from 20 to 200% of the primary input signal.

The CCC-1001 is designed to control valves, and actuators in HVAC systems. It is also designed to work with pressure switches, receiver gauges, relays, and temperature transmitters. It is particularly suitable for “low limit” applications.

(For “high volume” applications, with an output capacity of 200 scim (55 mL/s), use the CCC-1002 Receiver Controller.)

Application

The CCC–1001 is designed to control valves and actuators in HVAC systems, including “Low–Limit” applications.

Features

• Dual inputs
• Remote setpoint adjustment
• Field selectable, proportional, direct or reverse action
• Adjustable throttling range and authority
• Low limit applications
