Omega FDT-25
SKU: CS5801317MPN: FDT-25

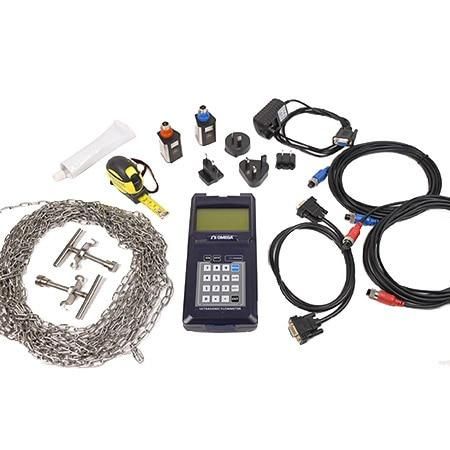

Portable Digital Ultrasonic Flow Meter Kit
Product Details
- High Accuracy Ultrasonic Flow Meter, better than 1%.
- Wide Measurement Range from DN15\~DN6000mm
- Rechargeable Power Supply: Built-in high-capacity NiMH rechargeable batteries will last more than 10 hours (Fully charged).
- Non invasion measurement, can achieve measurement with clamp on sensors
Attributes
| Accuracy | ± 1 % |
| Materials | ABS |
| Series ID | FDT-25-Flow-Meter |
| Form factor | Pipe Remote mount |
| Cable Length | 5 m |
| Display Note | 4 x 16 English letters, 4 x 8 Chinese characters |
| Display Type | LCD |
| Repeatability | 0.002 |
| Response Time | 0 to 999 sec |
| Velocity, Max | 32 m/s |
| Velocity, Min | -32 m/s |
| Data Interface | RS232 |
| Pipe Size, Max | 4 in |
| Pipe Size, Min | 0.75 in |
| Accuracy Detail | ±1% of reading at rates >(0.2m/s) 0.6 ft/s |
| Transducer Type | Clamp-on |
| Display Language | English, Chinese |
| Measurement Type | Transit Time |
| Country of Origin | China |
| Enclosure Ratings | IP65 |
| Relative Humidity | 85% RH |
| Supply Power Note | 3 “AAA” NiMH built-in batteries (included) with 100 to 240 VAC charger, fully charged lasts over 10 hrs |
| Supply Power Type | Battery |
| Battery Size and Type | NiMh AAA |
| Process Temperature, Max | 90 °C |
| Process Temperature, Min | 0 °C |
| Operating Temperature, Max | 60 °C |
| Operating Temperature, Min | -20 °C |
Specifications
| SKU | CS5801317 |
|---|---|
| MPN | FDT-25 |
You may also like
Omega FDT-25W
$2,255.56Unit

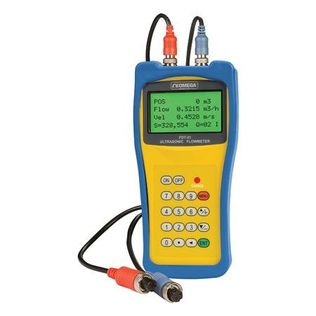

Omega FDT-21
