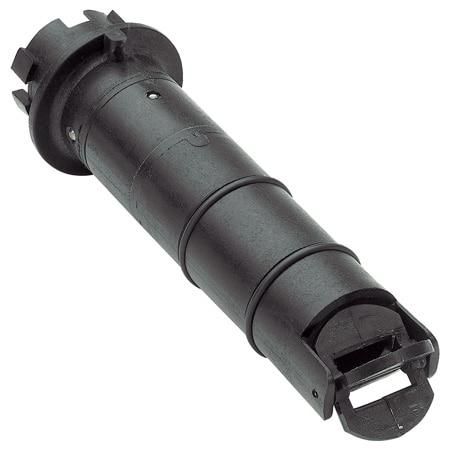

Omega FP-5600
SKU: CS5803197MPN: FP-5600
Low Velocity Paddlewheel Flow Meter
Product Details
- High Resolution
- Low Power
- Flow Rates As Low As 0.3 fps
- Open Collector Output
Attributes
| Weight | 0 kg |
| Accuracy | ± 1 % |
| K-Factor | 15 Hz/fps |
| Approvals | CE |
| Series ID | FP5600-8500A-Series |
| Cable Type | Twisted Pair with Foil Shield with Drain |
| Cable Length | 25 ft |
| Velocity, Max | 20 ft/s |
| Velocity, Min | 0.3 ft/s |
| Pipe Size, Max | 4 in |
| Pipe Size, Min | 0.5 in |
| Supply Current | 1.5 mA max |
| Supply Voltage | 3.3 to 24 Vdc |
| Linearity Error | ±1% |
| Cable Length Note | 7.6 m (25’) [300 m (1000’) maximum] |
| Country of Origin | United States |
| Electrical Output | Open Collector, Sinking |
| Materials, Wetted | FKM, Polypropylene, Titanium |
| Supply Power Note | 3.3 to 24 Vdc <1.5 mA @ 3.3V to 6 Vdc, <20 mA @ 6V to 24 Vdc |
| Pressure Drop Note | Very Low Pressure Drop |
| Media Compatibility | Liquids |
| Repeatability Error | ±0.5% |
| Mounting Orientation | Standard Intallation Fitting |
| Operating Pressure Note | PP sensor housing: 180 psi @ 20°C (68°F), 25 psi @ 85°C (185°F) |
| Operating Pressure, Max | 180 psi |
| Operating Pressure, Min | 0 psi |
| Process Temperature, Max | 85 °C |
| Process Temperature, Min | 0 °C |
| Measurement Pressure Type | Gauge |
| Material Construction Option | Polypropylene housing, Titanium shaft |
Specifications
| SKU | CS5803197 |
|---|---|
| MPN | FP-5600 |
