Omega MX1102A

Name: Omega MX1102A
Brand: Omega
SKU: CS5798908
Price: 916.16 USD
Availability: OutOfStock

SKU: CS5798908MPN: MX1102A

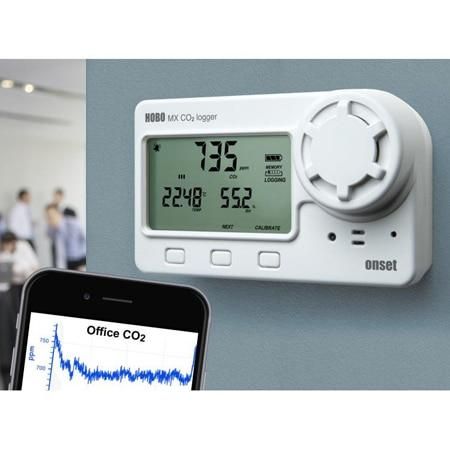

HOBO MX Bluetooth CO2, Temp and RH Data Logger with Display

$916.16

Unit

Available on backorder

Quantity

remove

add

Documents

Omega MX1102A Data Sheet

Product Details

Bluetooth Low Energy (BLE) 100-foot communications
Stores: 84,000 measurements
Accuracy: ±50 ppm, ±0.2°C (±0.4°F) and ±2%RH
Multiple Start \& Stop options

Attributes

Width	3 in
Height	1.88 in
Length	5.1 in
Memory	128 KB
Weight	9.43 oz
Display	LCD
Approvals	CE
Series ID	MX1102a-CO2-Logger
Input Type	Internal
Stop Modes	Button Push, When Memory is Full, At set date and time, At set Duration
Calibration	Auto or Manual to 400 ppm
Form factor	Wall Bracket Mount
Memory Note	20 seconds via USB; approximately 60 seconds via Bluetooth Smart, may take longer the further the device is from the logger
Radio Power	1 mW
Samples,Max	85k Samples, Interval Selectable 1 sec to 18hrs
Sensor Type	Non-Dispersive Infrared (NDIR)
Start Modes	At set date and time, Button Push, Immediate Start, Next Interval
Battery life	up to 6 mo, with reading interval of 5 min
CO2 Accuracy	± 50 ppm
Display Note	LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Memory Modes	stop when full, Wrap when full
Restart Mode	Push button
Configuration	HOBOmobile® app, Android, iOS, HOBOware for PC
Logging Modes	burst, Fixed interval
RH Resolution	0.0001
Response Time	Temperature: 12 Min, RH: 1 Min, CO2: 1 Min
Time Accuracy	± 1 minute/month at 25°C
Data Interface	Bluetooth
Accuracy Detail	Temperature Sensor Accuracy: ± 0.20°C from 0° to 50°C (± 0.36°F from 32° to 122°F), Relative Humidity Accuracy: ± 2% from 20% to 80% typical at 25°C, CO2 Accuracy: ± 50 ppm ± 5% of reading at 25°C (77°F), less than 70% RH and 1,013 mbar
RH Sensor Drift	<1% Per Year
Resolution Note	Temperature Sensor Resolution: 0.024°C at 25°C, Relative Humidity Resolution: 0.01% at 25°C
Measurement Type	CO2, Relative Humidity, Temperature
Country of Origin	United States
Enclosure Ratings	IP50
Relative Humidity	1% to 90% RH non-condensing
Supply Power Type	Battery
Response Time Note	Temperature: 12 Minutes to 90% in airflow of 1 m/s, RH: 1 Minute to 90% in airflow of 1 m/s, CO2: 1 Minute to 90% in airflow of 1 m/s
Transmission Range	30.5 m
Data Interface Note	Mobile Device Compatibility: iOS 8.3, 8.4 & 9.0, and Bluetooth 4.0 or later Bluetooth Compatibility :Bluetooth 4.0 or later (Bluetooth Low Energy, Bluetooth Smart)
RH Measurement Range	1 to 90% RH
Temperature Accuracy	± 0.21°C
Battery Size and Type	Alkaline AA
CO2 Measurement Range	0 to 5000 ppm
Measurement Range Note	RH :1% to 70% RH when CO2 sensor is enabled (non-condensing), 1% to 90% RH when CO2 sensor is disabled (non-condensing)
Number of Measurements	3
Temperature Resolution	0.024 °C
Temperature Sensor Drift	< 0.1°C Per Year
Operating Temperature, Max	50 °C
Operating Temperature, Min	0 °C
Relative Humidity Accuracy	± 2% RH
Temperature Measurement, Max	50 °C
Temperature Measurement, Min	0 °C
