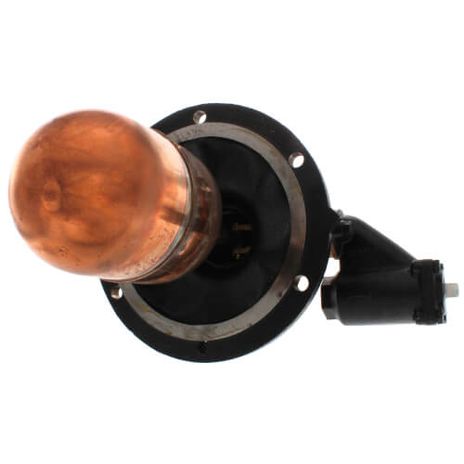

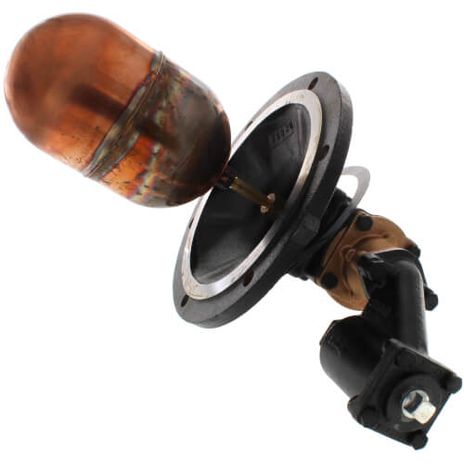

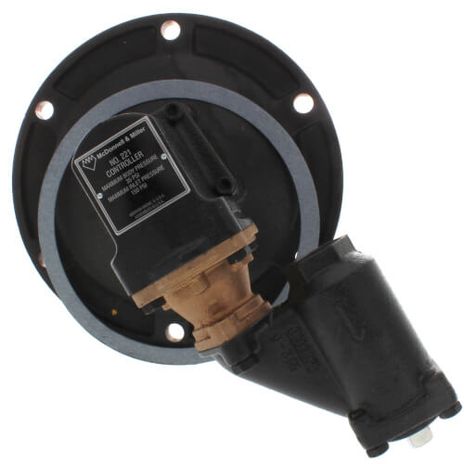

McDonnell & Miller 126600

221, Make-Up Water Feeder

• For boiler receiver tanks

• Direct mounting eliminates need for equalizing connections

• Proportional feed action

• Mounting Flange - six 17/32” (13.5mm) bolt holes on a 8 ½” (216mm) bolt circle

• Soft seat provides positive seal

• Maximum water supply pressure 150 psi (10.5 kg/cm2)

• Maximum inlet water temperature 120¦F (49¦C)

• Maximum vessel pressure 35 psi (2.5 kg/cm2)
