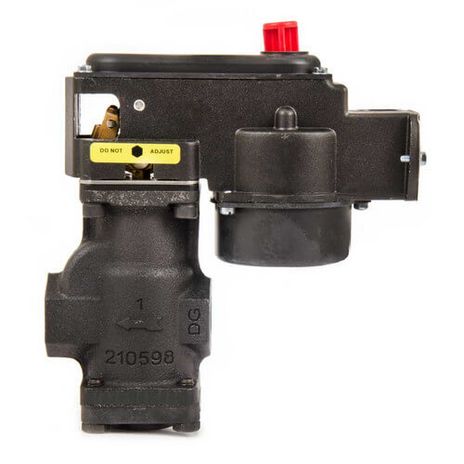

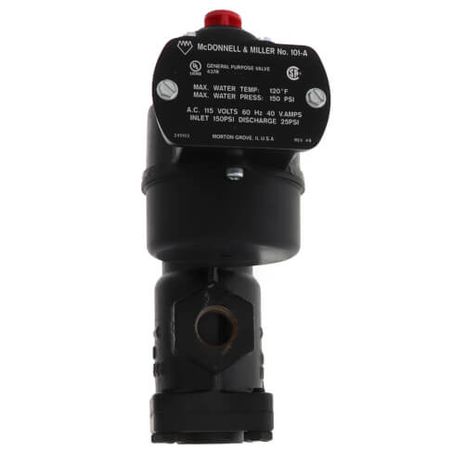

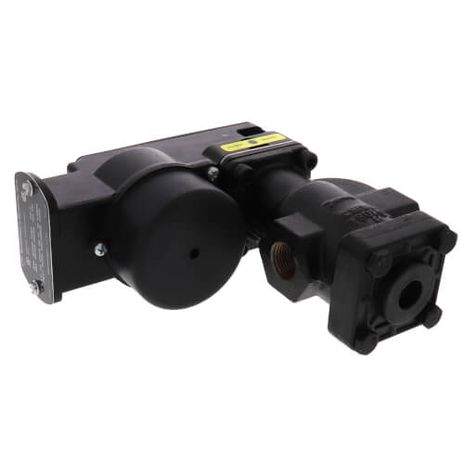

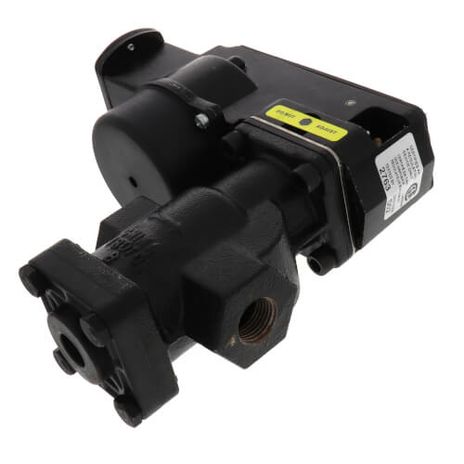

McDonnell & Miller 169400

101A-120V, 120V Electric Water Feeder

Overview:

• For low pressure steam boilers with cold water feed
• Eliminates necessity to manually add water to the boiler
• Can be used with mechanical or electronic low water cut-off controls
• Quick-change replaceable cartridge valve and strainer
• Manual feed button
• Model 101-A features a 120 VAC solenoid
• Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
• Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
• Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
• Maximum inlet water temperature 120 degrees F (49 degrees C)
• Maximum power consumption: 40 VA at 24 VAC, 40 VA at 120 VAC
