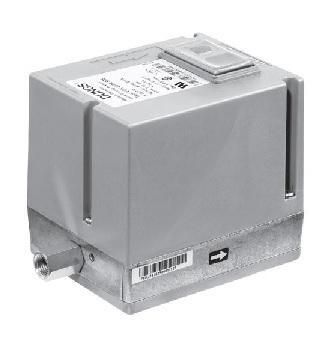

Dungs 211224

Valve Proving System VDK 200A S02, 110Vac

The DUNGS VDK 200 is a valve proving system for safety shutoff valves. It checks that both safety shutoff valves in a gas train are fully closed before a system startup or after system shutdown when wired and interlocked to a suitable flame safeguard control. The VDK 200 will halt the startup sequence to a burner if it detects an open safety shutoff valve, thus preventing ignition under undesirable conditions.

Dungs 211224 Features:

• 12 mm Rp connections; max vol. 0,7 cu ft (20 liters)
• 110 Vac (+10%/-15%)
• 50 Hz
• Run Contact 4A @ 100 Vac / 50 Hz
• Alarm Contact 1A @ 110 Vac 50 Hz
• IP 40

PART NUMBER CHANGED BY FACTORY -- OLD PN#211-224
