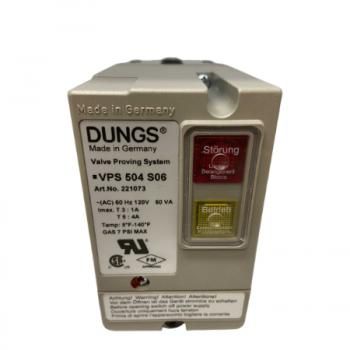

Dungs 221073

Valve Proving System VPS 504 S06

The DUNGS VDK 200 is a valve proving system for safety shutoff valves. VPS checks that both safety shutoff valves in a gas train are fully closed before a system startup and after system shutdown when wired and interlocked to a suitable flame safeguard control. The VDK 200 will halt the startup sequence to a burner if it detects an open safety shutoff valve, thus preventing ignition under undesirable conditions.

Dungs 221073 Features:

• Max. Vol. 0,14 cu ft (4 liters)
• 120Vac
• 60Hz
• SPDT Sw 4A @ 120Vac
• NEMA 12

PART NUMBER CHANGED BY FACTORY -- OLD PN #221-073
