HVAC/RValvesSiemens Building Technologies

Siemens 599-02039

Name: Siemens 599-02039
Brand: Siemens Building Technologies
SKU: CS571978
Price: 67.13 USD
Availability: InStock

SKU: CS571978MPN: 599-02039UPC/EAN: 804766016592

MT Series ½” 2W Valve, 2.5Cv, NO, Mod Eq Percent, Brass Trim, FxUM, ANSI 250

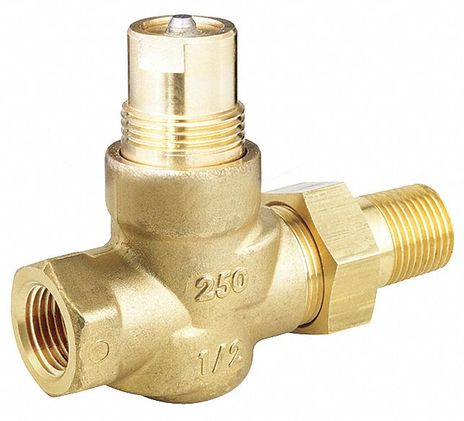

Siemens Building Technologies 599-02039, 599-02042, 599-02045

$67.13

Unit

14 in stock

Quantity

remove

add

Product Details

Powermite MT Series, ½” 2-Way, 2.5 Cv, NO, Modified Equal Percentage, F×UM, Brass Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range, No tools required f

Attributes

End Connection	FxUM
Flow Characteristic	Modified Equal-percentage
Flow Coefficient Cv	2.5000
Medium	Water;Water with anti-freeze
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Mounting Position	any
Normally Open Normally Closed	Normally Open
Permissible Operating Pressure	2758 kPa; 400 psi
Port Configuration	2-Way Normally open
Trim Material	Brass
Valve Body Style	Stroke-Globe
Valve Size	0.5 in
Valve Type	Two-way
