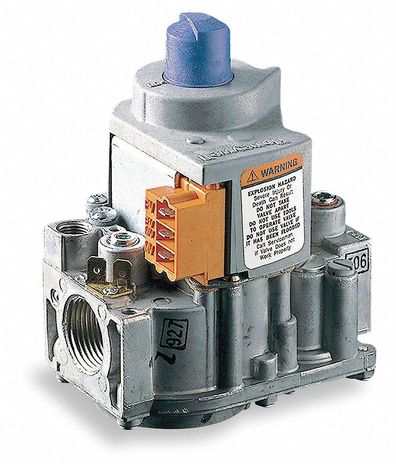

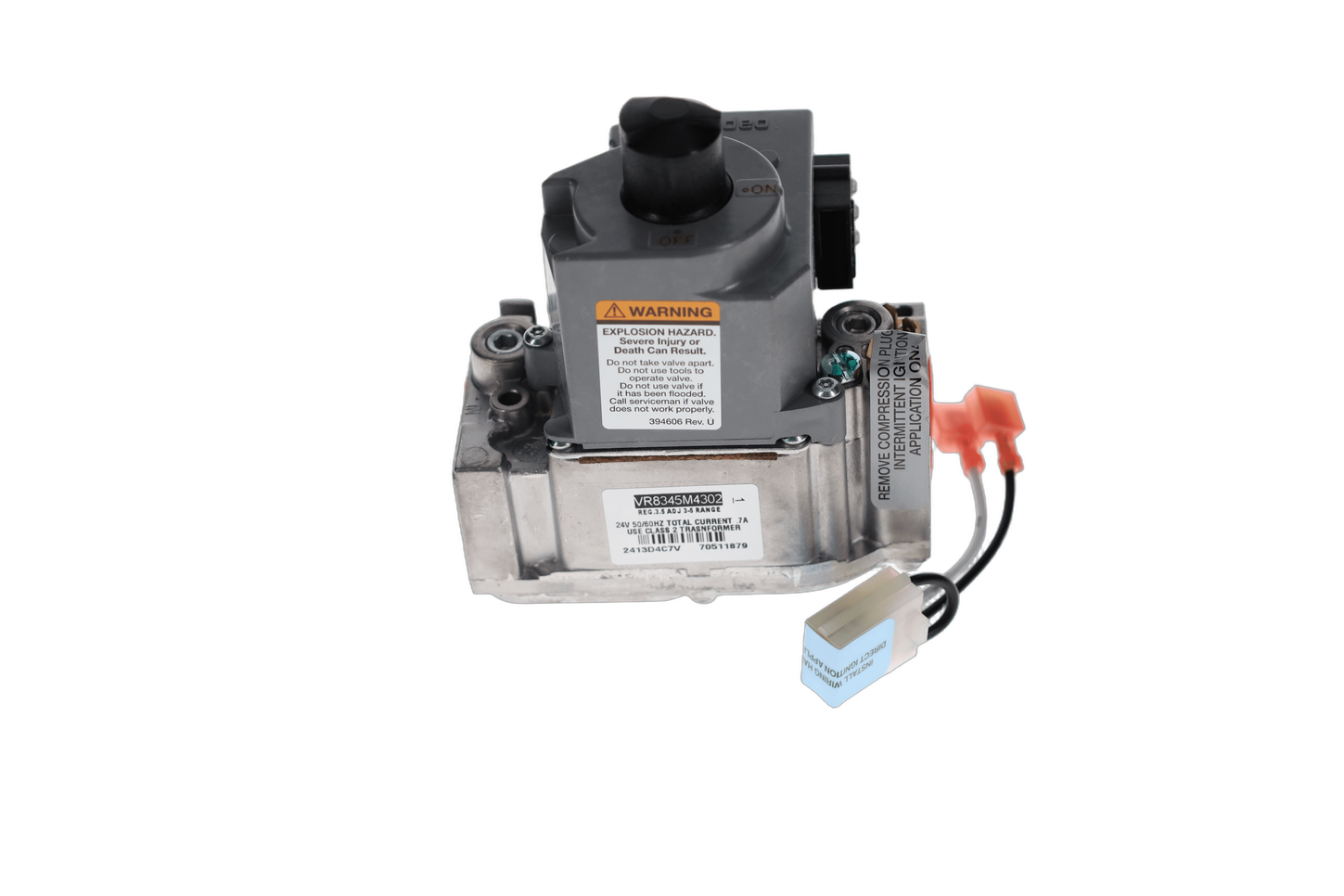

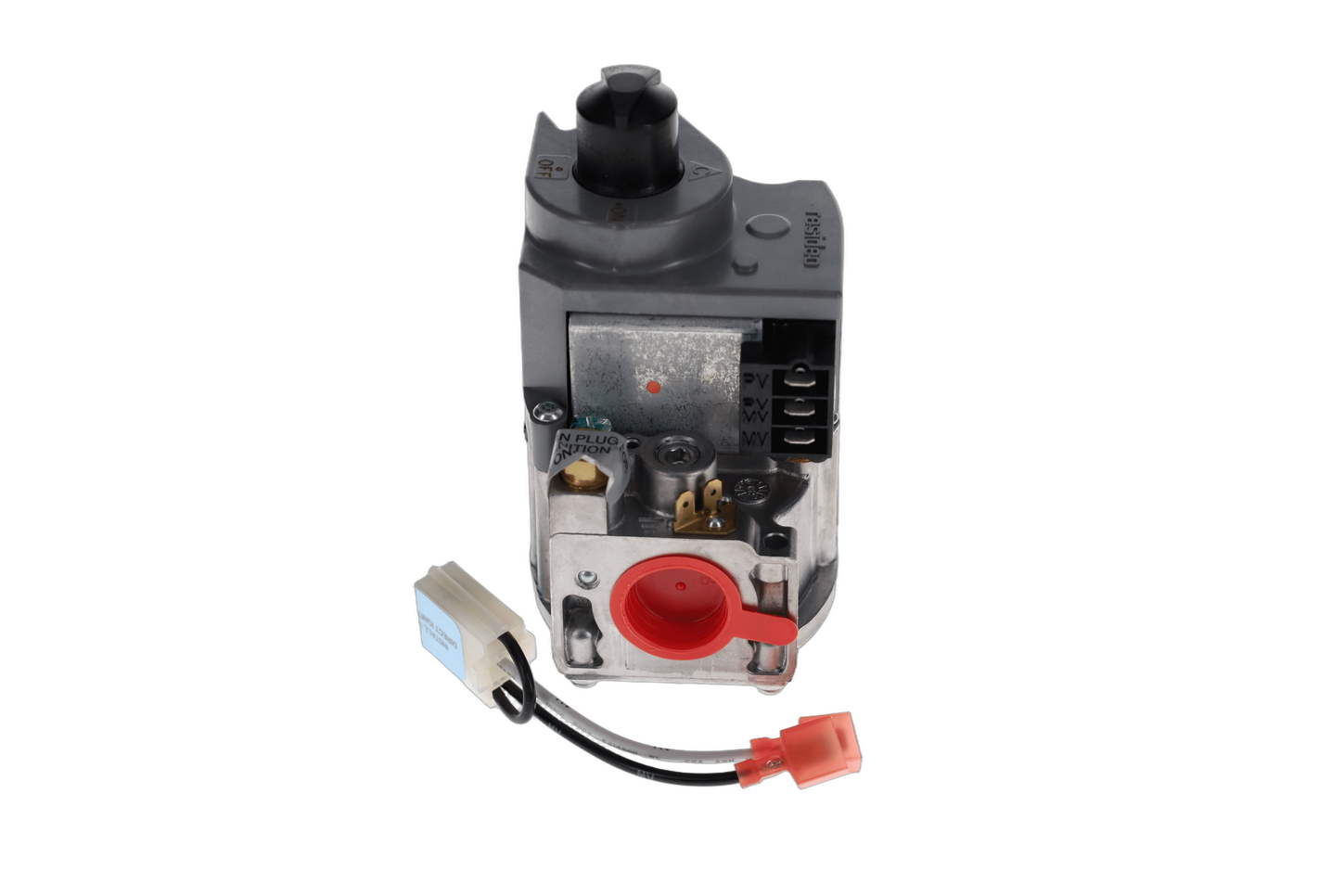

Resideo VR8345M4302

Direct spark ignition, hot surface ignition, or intermittent pilot ignition

Note: This sku is the suggested replacement of Slant/fin 411-928-000 and 411-927-000

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.

Features:

• Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
• Replaces virtually any IP, HSI, or DSI gas control
• For use with natural or manufactured gas or LP gas
• Includes converter kit to adapt from natural to LP gas
• Compact size
• All adjustments and wiring connections accessible from top of control
• Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules
• Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
• Internal inlet screen blocks contaminants in gas line from entering valve

Specifications:

• Opening Characteristics: Standard
• Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Pressure Regulator Setting (psi): 3.5 in. wc
• Pressure Regulator Setting (kPa): 0.87 kPa
• Pressure Tapping: ⅛ in. NPT with plug
• Electrical Connections: ¼ in. quick-connect male terminals
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Temperature Range (F): -40 F to +175 F
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Dimensions (in.): 5 ⅜ in. high x 4 1/16 in. wide x 2 11/16 in. deep
• Includes: Two ¾ x ½ in. reducer bushings, natural to LP Conversion Kit
• Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007
• Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025007
• Approvals, Underwriters Laboratories Inc: UL Component Recognized
