Eaton E57-30LE22-C

Name: Eaton E57-30LE22-C
Brand: Eaton
SKU: CS550820
Price: 220.32 USD
Availability: OutOfStock

SKU: CS550820MPN: E57-30LE22-CAlternate Part #s: E57-30LE22-CEAT-E57-30LE22-CUPC/EAN: 782113013404

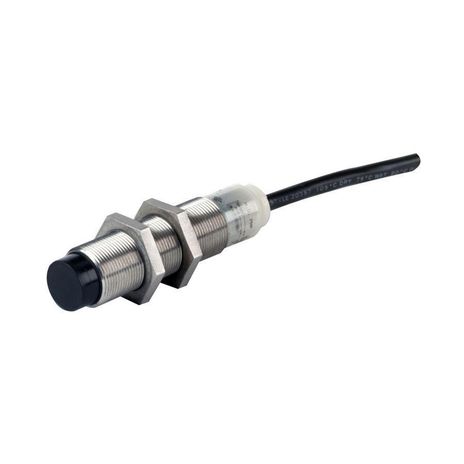

Eaton E57 inductive proximity sensor

Eaton E57-30LE22-A, E57-30LE22-A1, E57-30LE22-A1A, E57-30LE22-AA, E57-30LE22-B, E57-30LE22-B1, E57-30LE22-B1D, E57-30LE22-BD, E57-30LE22-C1, E57-30LE22-C1D, E57-30LE22-CD

Product Details

E57 Premium+ Series Tubular Inductive Proximity Sensor Enclosure, 1.18 dia, dist. 22 mm, NPN, NO, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 6.6 Ft. (2m) Cable, 6-48 Vdc input, Auto reset short circuit, Semi-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 3% of sensing distance
Actuator Function	Semi-shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NPN, NO
Contact Rating	500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc
Enclosure Material	Front cap: polyphenylene sulfide End bell: polycarbonate Tube: stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	Green power up turns red when output energized
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Inductive proximity
Series	E57
