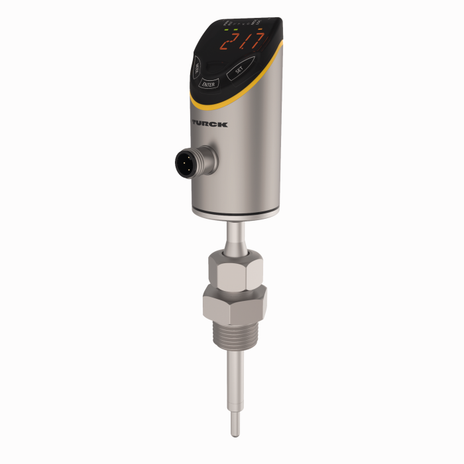

Turck TS700-L050-16-2UPN8-H1141
SKU: CS5505363MPN: TS700-L050-16-2UPN8-H1141Alternate Part #: 100004379UPC/EAN: 4047101498530
$676.92
UnitAvailable on backorder
Product Details
Temperature Detection
With 2 PNP/NPN Transistor Switching Outputs
- Screw-in adapter with process connection NPT½” male thread included in delivery
- 4-digit, 2-colored, 12-segment display, rotatable by 180°
- Upper part of housing can be rotated up to 340°
- Materials in contact with media: 1.4404 (316L), CR O-ring
- Immersion length: 50 mm
- 10…33 VDC
- NO/NC contact, PNP/NPN output, IO-Link
- Various IO-Link mapping profiles can be selected
Attributes
| Ambient Temperature | -40…+80 °C |
| Approvals | CE, cULus |
| Communication Protocol | IO-Link |
| Customs Tariff Number | 90251900900.0000 |
| Design | With display (integrated probe) |
| Detection Type | medium contact |
| Ecl Ss Code V5 1 4 | 27200206 -/- Transducer (temperature) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | 2 × switching output, IO-Link |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV |
| Measuring Range | -50…150 °C |
| Operating Voltage | 10…33 VDC |
| Process Connection | ½″ NPT male thread |
| Protection Class | IP66/IP67/IP69K |
Specifications
| SKU | CS5505363 |
|---|---|
| MPN | TS700-L050-16-2UPN8-H1141 |
| Alternate Part # | 100004379 |
| UPC/EAN | 4047101498530 |
