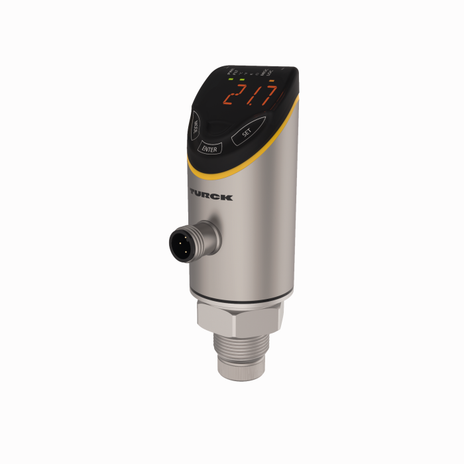

Turck TS720-2UPN8-H1141
SKU: CS3878012MPN: TS720-2UPN8-H1141Alternate Part #: 100003633UPC/EAN: 4047101482904
100003633 - PT1000, SENSOR, GEN., GEN.
$541.10
UnitAvailable on backorder
Product Details
Temperature Detection
With 2 PNP/NPN Transistor Switching Outputs
- Processor unit for connecting sensors from the TP product series
- Automatic probe detection
- 4-digit, 2-color, 12-segment display, rotatable by 180°
- Housing upper section rotatable by 340°
- Compatible with the following temperature sensors:
- Resistance Temperature Detector (RTD) — Pt100 (2-, 3-, 4-wire) — Pt1000 (2-, 3-, 4-wire)
- Thermocouples (TC) — type K, B, E, J, N, R, S and T
- 10…33 VDC
- NO/NC contact, PNP/NPN output, IO-Link
- Various IO-Link mapping profiles can be selected
Attributes
| Ambient Temperature | -40…+80 °C |
| Approvals | CE, cULus |
| Communication Protocol | IO-Link |
| Customs Tariff Number | 90251900900.0000 |
| Design | With display (external probe) |
| Detection Type | medium contact |
| Ecl Ss Code V5 1 4 | 27200206 -/- Transducer (temperature) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | 2 × switching output, IO-Link |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV |
| Operating Voltage | 10…33 VDC |
| Protection Class | IP66/IP67/IP69K |
Specifications
| SKU | CS3878012 |
|---|---|
| MPN | TS720-2UPN8-H1141 |
| Alternate Part # | 100003633 |
| UPC/EAN | 4047101482904 |
