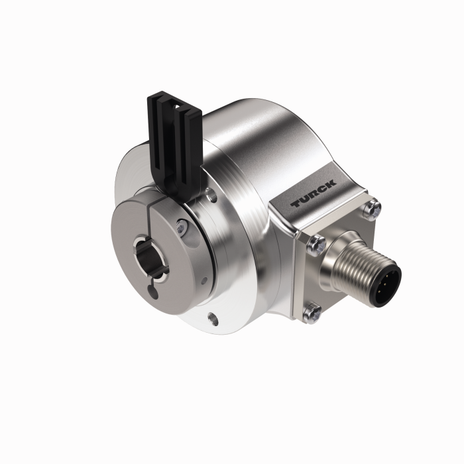

Turck RI-12H12S1-2B256-H1181
SKU: CS5504416MPN: RI-12H12S1-2B256-H1181Alternate Part #: 1545641UPC/EAN: 4047101414011
$541.94
UnitAvailable on backorder
Product Details
Incremental Encoder
Industrial Line

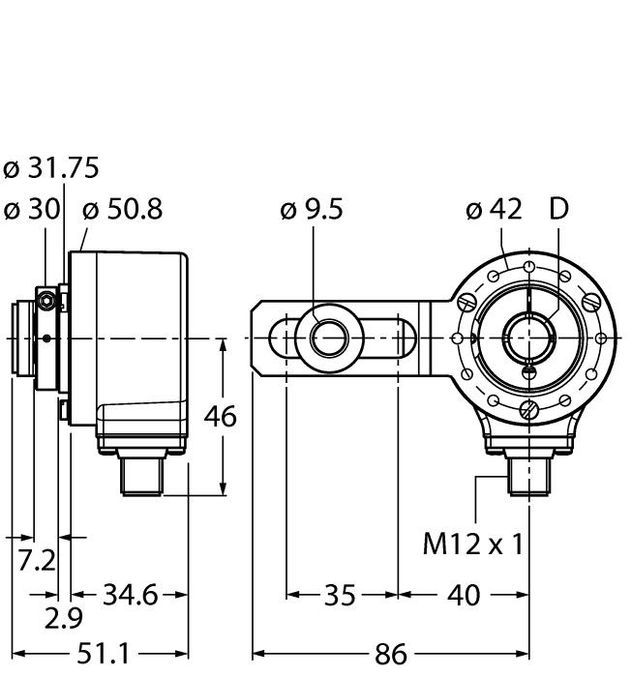

- Flange with tether arm for 40-75mm mounting diameters
- Hollow shaft, Ø 12 mm
- Optical measuring principle
- Shaft material: stainless steel
- IP67 rated on shaft side
- ‐30 …+85 °C (with flexible use of cable -20 …+85 °C)
- Max. 6000 rpm (continuous operation 3000 rpm)
- 10…30 VDC
- Male connector, M12 x 1 , 8-pole
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 256 pulses per revolution
Attributes
| Ambient Temperature | -30…+85 °C |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Type | Flange with mounting element |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Resolution Incremental | 256 ppr |
| Shaft Diameter D Mm | 12 mm |
| Shaft Type | Hollow shaft |
| Technology | Optical |
Specifications
| SKU | CS5504416 |
|---|---|
| MPN | RI-12H12S1-2B256-H1181 |
| Alternate Part # | 1545641 |
| UPC/EAN | 4047101414011 |
