All ProductsTurck

Turck RI-12H12S1-2F1000-H1181

SKU: CS3832515MPN: RI-12H12S1-2F1000-H1181Alternate Part #: 1544898UPC/EAN: 4047101303216

1544898 - INCREMENTAL

Turck RI-12H12S1-2F1000-H1181, RI-12HA4S1-2K1024-H1181
Turck RI-12H12S1-2F1000-H1181, RI-12HA4S1-2K1024-H1181
Turck RI-12H12S1-2F1000-H1181, RI-12HA4S1-2K1024-H1181
Turck RI-12H12S1-2F1000-H1181, RI-12HA4S1-2K1024-H1181
$541.94
Unit
Available on backorder
remove
add

Product Details

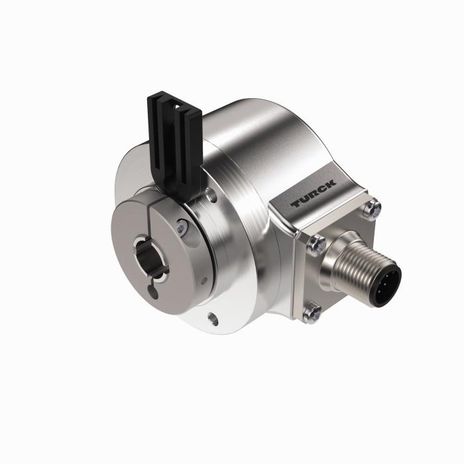

Incremental Encoder

Industrial Line

  • Flange with tether arm for 40-75mm mounting diameters
  • Hollow shaft, Ø 12 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • IP67 rated on shaft side
  • ‐30 …+85 °C (with flexible use of cable -20 …+85 °C)
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector, M12 x 1 , 8-pole
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 1000 pulses per revolution

Attributes

Ambient Temperature -30…+85 °C
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector, M12 × 1
Encoder Line Industrial-Line
Flange Type Flange with mounting element
Housing Material Die-cast zinc
Operating Voltage 5…30 VDC
Output Function Push-Pull 7272, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Shaft IP67
Resolution Incremental 1000  ppr
Shaft Diameter D Mm 12 mm
Shaft Type Hollow shaft
Technology Optical

Specifications

SKUCS3832515
MPNRI-12H12S1-2F1000-H1181
Alternate Part #1544898
UPC/EAN4047101303216
