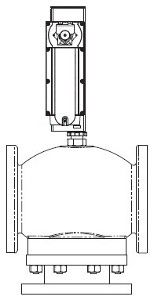

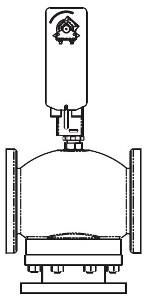

Schneider Electric VS-8303-516-5-16

SKU: CS5490052MPN: VS-8303-516-5-16UPC/EAN: 711426011388

VB: 6 in, 3W Mix/Div, Globe, FLG, UC, BR, 500 cv, 32 PSI, Act (MS41-6343): Elec, Prop, NSR, 24 VAC/VDC, Plen, 300 in-lb, Rotary, N1/N4

Schneider Electric VS-8303-516-5-16
$7,768.64
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 6 in
  • Configuration: 3-Way Mixing/Diverting
  • Type: Globe
  • Connection: Flanged
  • Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
  • Material Trim: Brass
  • Flow Coefficient: 500 cv
  • Close-Off Pressure: 32 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 300 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1, NEMA 4

Assembly Components:

  • Valve Body: VB-8303-0-5-16
  • Valve Range: Balanced Plug Technology
  • Valve Linkage: AV-609-1
  • Actuator: MS41-6343
  • Actuator Range: SmartX Actuator

Product Alert: Not for use with steam.

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator rotary
Actuator Rotation 92 °
Ambient Air Temperature For Operation -31.6-60 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…10 V DC 4…20 mA DC
Body Material cast iron
Control Type automatic reset
Electrical Insulation Class class II
Hold In Power Consumption In Va 2.2-2.2 VA DC 4-4 VA AC
Ip Degree Of Protection IP10 IP56
Material die cast aluminium: housing
Motor Type brushless DC motor
Operating Fluid Temperature -7-138 °C
Power Consumption In Va 3.4 VA DC 5.6 VA AC
Power Consumption In W 3.6 W
Product Destination dampers globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 5-95 % non-condensing
Seat Leakage Port A: Class III (0.1 %)
Seat Material Port A: brass
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54039_XXX

Specifications

SKUCS5490052
MPNVS-8303-516-5-16
UPC/EAN711426011388
