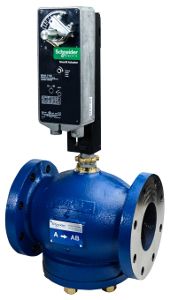

Schneider Electric VS-8213-516-5-16

VB: 6 in, 2W, Globe, FLG, UO, BR, 370 cv, 125 PSI, Act (MS41-6343): Elec, Prop, 2-10 VDC/4-20 mAdc, NSR, 24 VAC/VDC, Plen, 300 in-lb, Rotary, N1/N4

Valve Assembly:

• Body Size: 6 in
• Configuration: 2-Way
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Flow Coefficient: 370 cv
• Close-Off Pressure: 125 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Non-Spring Return
• Loss of Power Position: Fail in place
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Leads and Connections: 3 ft Plenum
• Torque: 300 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 4

Assembly Components:

• Valve Body: VB-8213-0-5-16
• Valve Range: Balanced Plug Technology
• Valve Linkage: AV-609-1
• Actuator: MS41-6343
• Actuator Range: SmartX Actuator
