Schneider Electric VS-7223-546-4-09

SmartX, Globe Valve Assembly, 1-¼ in, 2-way, Stem Up Close, 20 cv, 120 PSI, Spring Return, Normally Close, 24 VAC/VDC, Appliance, 60 in-lb

Valve Assembly:

• Body Size: 1-¼ in
• Configuration: 2-Way
• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Stem Flow Action: Stem up A closed
• Material Trim: Brass
• Flow Coefficient: 20 cv
• Close-Off Pressure: 120 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 60 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 2

Assembly Components:

• Valve Body: VB-7223-0-4-09
• Valve Range: Venta
• Valve Linkage: AV-602

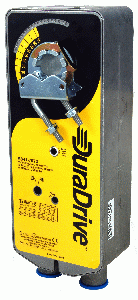

• Actuator: MS41-7073
• Actuator Range: SmartX Actuator
• Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
