Schneider Electric VA-8303-556-5-16
SKU: CS5489517MPN: VA-8303-556-5-16UPC/EAN: 711426027952
VB: 6 in, 3W Mix/Div, Globe, FLG, UC, BR, 500 cv, 15 PSI, Act (MA41-7153): Elec, 2Pos, SR, 24 VAC/VDC, 22-30 VDC, App, 133 in-lb, Rotary, N1/N2
$7,496.58
UnitAvailable on backorder
Product Details
Valve Assembly:
- Body Size: 6 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 500 cv
- Close-Off Pressure: 15 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
Assembly Components:
- Valve Body: VB-8303-0-5-16
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-609-1
- Actuator: MA41-7153
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
Product Alert: Not for use with steam.
Attributes
| Us Rated Supply Voltage | 22…30 V DC 24 V AC/DC |
| Actuator | rotary |
| Actuator Rotation | 95 ° |
| Ambient Air Temperature For Operation | -30-60 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Body Material | cast iron |
| Control Type | automatic reset |
| Current Consumption | 290 mA |
| Electrical Insulation Class | class II |
| Hold In Power Consumption In W | 2.8-2.8 W |
| Ip Degree Of Protection | IP10 IP11 |
| Material | die cast aluminium: housing |
| Motor Type | brushless DC motor |
| Operating Fluid Temperature | -7-138 °C |
| Power Consumption In Va | 9.8 VA AC |
| Power Consumption In W | 7.5 W |
| Product Destination | butterfly valves dampers globe valve |
| Product Or Component Type | valve-actuator assembly |
| Relative Humidity | 5-95 % non-condensing |
| Seat Leakage | Port A: Class III (0.1 %) |
| Seat Material | Port A: brass |
| Switch Function | No |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54039_XXX |
Specifications
| SKU | CS5489517 |
|---|---|
| MPN | VA-8303-556-5-16 |
| UPC/EAN | 711426027952 |
You may also like
Schneider Electric VA-8303-556-5-14
$3,166.98UnitSchneider Electric VA-8303-556-5-15
$5,386.25UnitSchneider Electric VA-8303-556-5-13
$2,863.49UnitSchneider Electric VS-8303-556-5-16
$7,117.71UnitSchneider Electric VA-8303-556-5-12
$2,913.69UnitSchneider Electric VS-8303-556-5-15
$5,007.37UnitSchneider Electric VS-8303-556-5-14
$2,788.10UnitSchneider Electric VA-9313-556-5-12
$2,136.95UnitSchneider Electric VA-9313-556-5-14
$2,333.02UnitSchneider Electric VS-8303-556-5-12
$2,534.82Unit

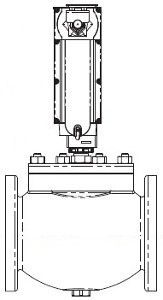

Schneider Electric VA-8223-556-5-16
