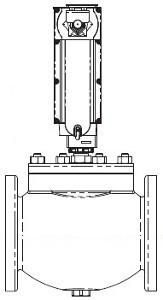

Schneider Electric VA-8303-556-5-15
SKU: CS5489516MPN: VA-8303-556-5-15UPC/EAN: 711426069051
VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 32 PSI, Act (MA41-7153): Elec, 2Pos, SR, 24 VAC/VDC, 22-30 VDC, App, 133 in-lb, Rotary, N1/N2
$5,386.25
UnitAvailable on backorder
Product Details
Valve Assembly:
- Body Size: 5 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 290 cv
- Close-Off Pressure: 32 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
Assembly Components:
- Valve Body: VB-8303-0-5-15
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-607-1
- Actuator: MA41-7153
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
Product Alert: Not for use with steam.
Attributes
| Actuator | rotary |
| Product Or Component Type | valve-actuator assembly |
| IP Degree Of Protection | IP10; IP11 |
| (Us) Rated Supply Voltage | 22…30 V DC; 24 V AC/DC |
| Switch Function | No |
| Body Material | cast iron |
| Operating Fluid Temperature | -7-138 °C |
| Seat Leakage | Port A: Class III (0.1 %) |
| Seat Material | Port A: brass |
| Control Type | automatic reset |
| Electrical Insulation Class | class II |
| Ambient Air Temperature For Operation | -30-60 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Relative Humidity | 5-95 % non-condensing |
| Actuator Rotation | 95 ° |
| Material | die cast aluminium: housing |
| Motor Type | brushless DC motor |
| Power Consumption In VA | 9.8 VA AC |
| Power Consumption In W | 7.5 W |
| Current Consumption | 290 mA |
| Hold-In Power Consumption In W | 2.8-2.8 W |
Specifications
| SKU | CS5489516 |
|---|---|
| MPN | VA-8303-556-5-15 |
| UPC/EAN | 711426069051 |
