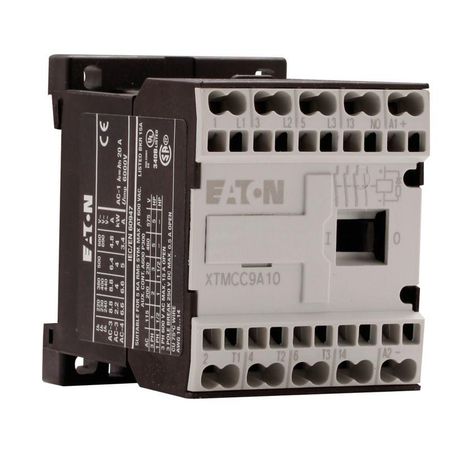

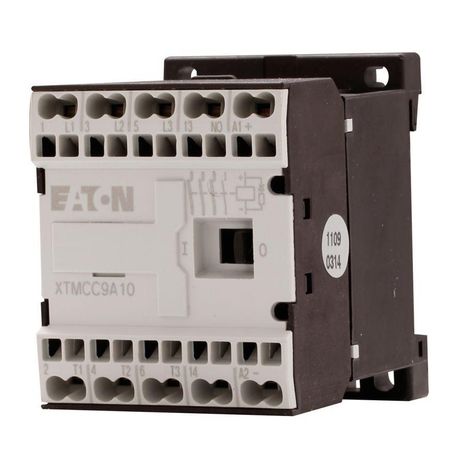

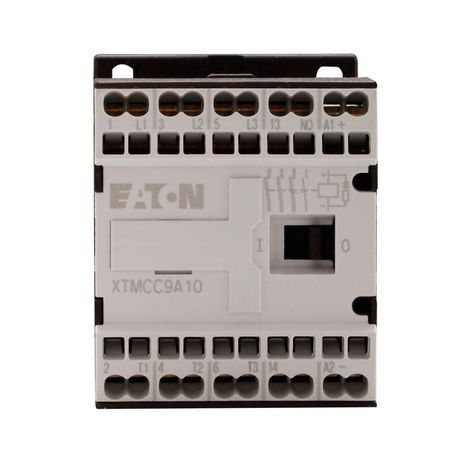

Eaton XTMCC9A10T

Name: Eaton XTMCC9A10T
Brand: Eaton
SKU: CS5482949
Price: 52.07 USD
Availability: OutOfStock

SKU: CS5482949MPN: XTMCC9A10TAlternate Part #: MSAA231664UPC/EAN: 4015082316648

Eaton XT IEC mini contactor

Product Details

Eaton XT IEC mini contactor, 8.80A, 24 Vac, 50-60 Hz, 1NO, 20A, 45 mm mini, 50-60 Hz, 0.5, 1, 1.5/ 2, 3, 5, 5 hp (⅓PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Spring cage terminals, Full voltage non-reversing mini contactor

Attributes

Amperage Rating	8.80A
Coil Voltage	24 Vac, 50-60 Hz
Contact Configuration	1 NO
Continuous Ampere Rating	20 A
Frequency Rating	50-60 Hz
Hp Rating Max	0.5, 1, 1.5/ 2, 3, 5, 5 hp (⅓PH @115,200,230/200,230,460,575 V)
Number Of Poles	Three-pole
Operation	Non-reversing
Series	XT IEC
Terminals	Spring cage terminals
Type	Full voltage non-reversing mini contactor
