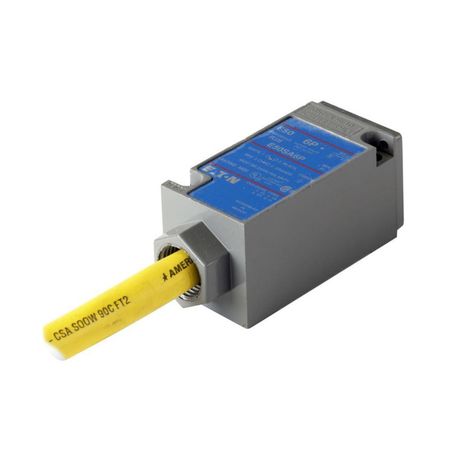

Eaton E50SA6P12

Name: Eaton E50SA6P12
Brand: Eaton
SKU: CS5481539
Price: 408.82 USD
Availability: OutOfStock

SKU: CS5481539MPN: E50SA6P12UPC/EAN: 782113135618

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1RFY1, E50AL16P20, E50AL1P5, E50ALH1, E50ALH16P, E50ALL1, E50ALL16P, E50ALM1, E50ALM16P, E50ALM16P20, E50ALR1, E50ALR16P, E50ALR16P12, E50ALR16P20, E50ALR16PC

Product Details

Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 12 Ft. ( 3.7m ) Cable, 10A at 240Vac, 1A at 250Vdc, SOOW-A, 1NO-1NC, 144Foot, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K, 10A, 1A, -29° to 221°F (-34° to 105°C)

Attributes

Cable Type	SOOW-A
Connection	12 ft (3.7 m) cable
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240Vac, 1A at 250Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	221 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-29 FAH
Operating Temperature Min Uom	FAH
