Eaton E50BT16P

Name: Eaton E50BT16P
Brand: Eaton
SKU: CS4871865
Price: 757.88 USD
Availability: OutOfStock

SKU: CS4871865MPN: E50BT16PUPC/EAN: 782113366432

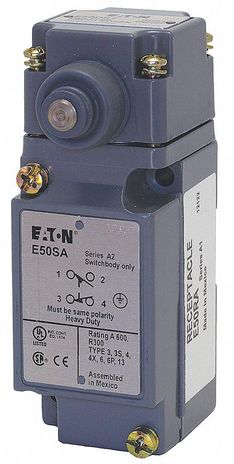

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch,Within 0.002,8 Ft. ( 2.5m ) Cable,10A at 240Vac,1A at 250Vdc,SOOW-A,2NO-2NC,96Foot,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,IP69K,10A,1A,14° to 221°F (-10° to 105°C),Top Pushbotton

Attributes

Accuracy	Within 0.002
Cable Type	SOOW-A
Connection	8 ft (2.4 m) cable
Contact Configuration	2 NO-2 NC
Contact Rating	10A at 240Vac, 1A at 250Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	221 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Switch Type	Top pushbutton
