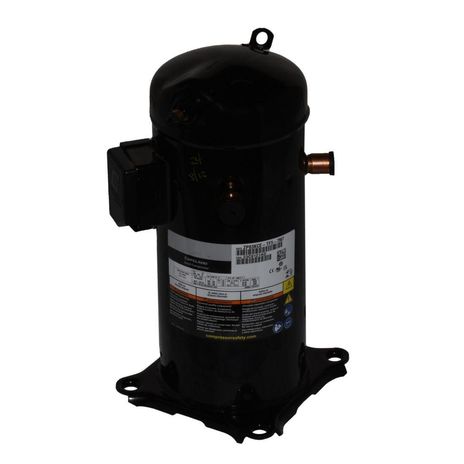

Carrier ZP83KCE-TF5-7M7
SKU: CS5467028MPN: ZP83KCE-TF5-7M7
COMPRESSOR
$4,400.14
UnitAvailable on backorder
Product Details
Attributes
| Amps | 16.6 |
| Phase | Three |
| Voltage | 200-220/200-230 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 83,000 |
| Protection | Internal Inherent Protection |
| Cycle/Hertz | 50/60 Hz |
| Refrigerant | R-410A; R-410B |
| Displacement | 4.71 (in^3/Rev) |
| Compressor Type | Scroll |
| Sound Level (dBA) | 75 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 85°F to 115°F (29.44°C to 46.11°C) |
| Mass Flow (lbs/hr) | 1250 lbs./hr.; 1220 lbs./hr. |
| Mounting Dimensions | 7.5” x 7.5” x 18.16” |
| Rated Load Amps (RLA) | 27.9 |
| Substantial Commodity | Steel |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Size (OD) | ⅞” |
| Evaporating Temperature | 45°F (7.22°C) |
| Locked Rotor Amps (LRA) | 164 |
| Oil Charge Initial (oz.) | 60 |
| Discharge Connection Type | Stub |
| Suction Line Fitting Type | Stub |
| Discharge Connection Size (OD) | ½” |
Specifications
| SKU | CS5467028 |
|---|---|
| MPN | ZP83KCE-TF5-7M7 |
