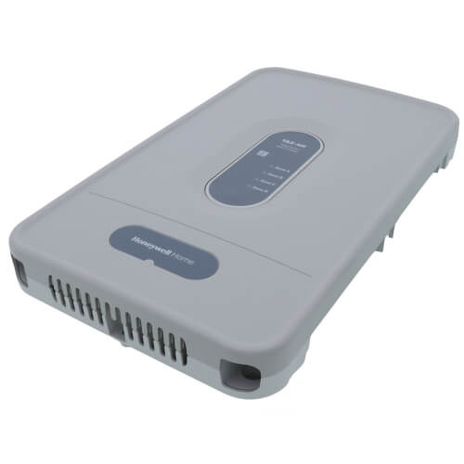

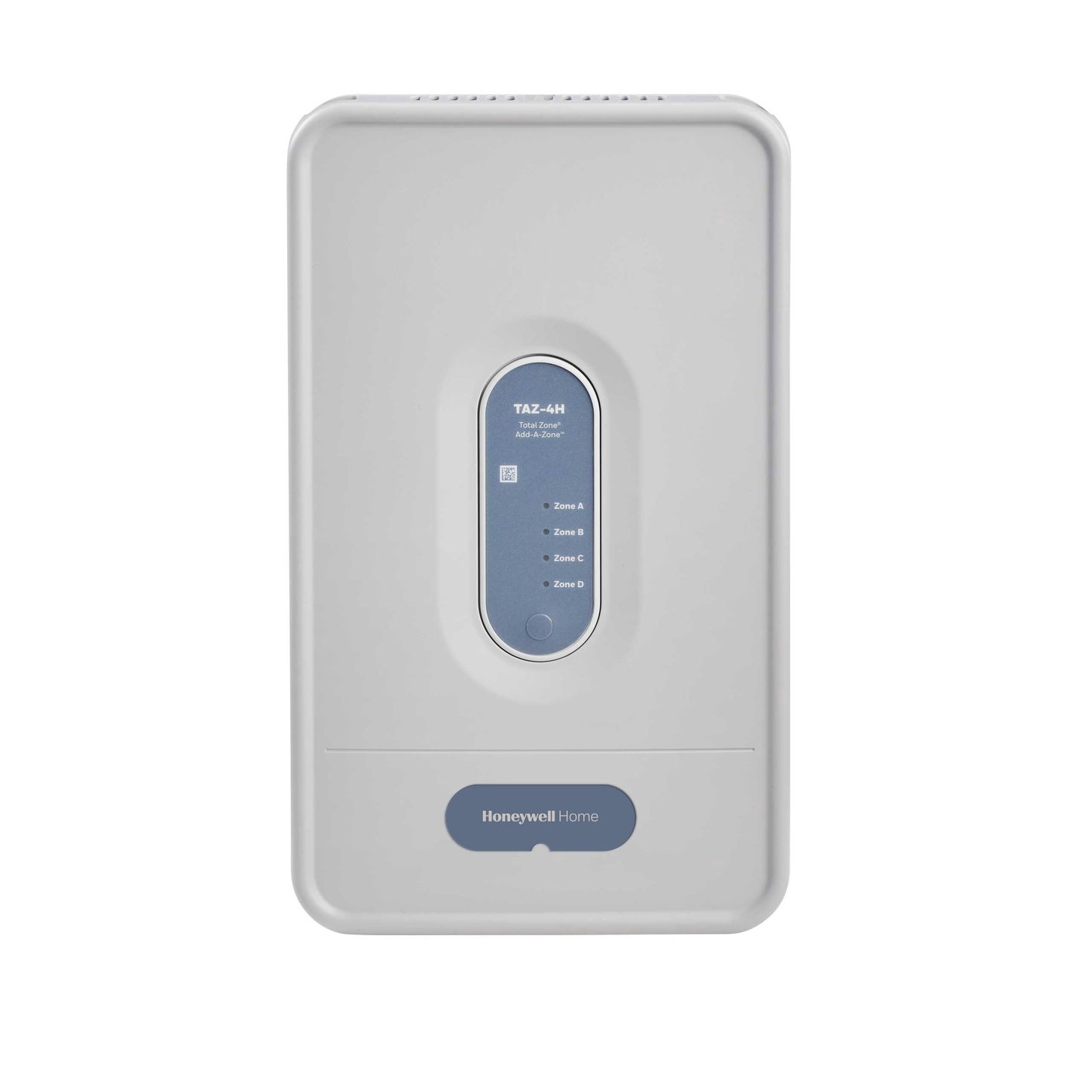

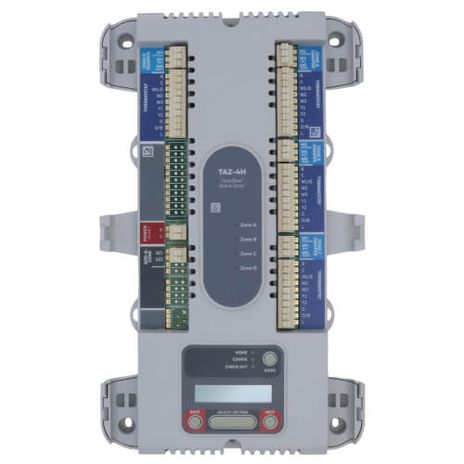

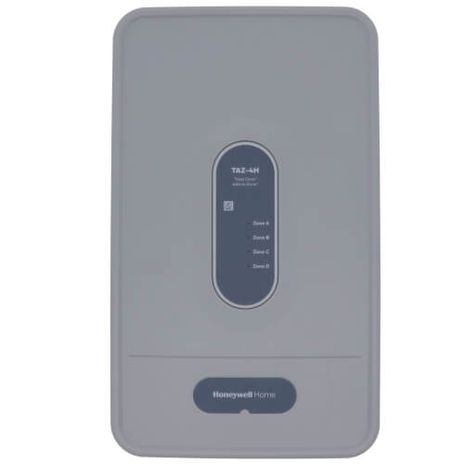

Resideo TAZ-4H

TAZ-4H Add-A-Zone Panel

Zone panel used to add zones to TZ-4.

Specifications

• Application Zoning: add a zone panel (4-zone)
• Network Zoning: No
• Number of Zones: 4 Zone
• Heat Pump Compatible: Yes
• Stages: 3 Heat/2 Cool
• Auto Changeover: Yes
• Voltage: 24V
• Discharge Air Temp. Compatible: Yes
• Compatible with Supply Air Sensor: No
• Emergency Heat Switch: No
• Resettable Fuse: Yes
• Individual Zone Fan Control: Yes
• LEDS: Yes

Features

• Used with HZ432 TrueZONE Panel to expand number of zones.
• Each TAZ-4 panel adds control of up to 4 additional zones to the TZ-4 TotalZone Zone Control System
• Reduces communication interference.
• Use multiple TAZ-4 panels together to control up to 32 zones.
• Zone LEDs indicate proper position.
• Thermal circuit breaker protects panel.
