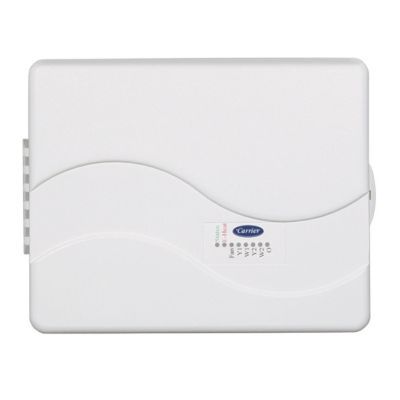

Carrier ZONECC3ZHP01

Carrier® ComfortZone™ 3 Zone for Heat Pump

Carrier’s 3-Zone HP zoning system is comprised of a 3-zone controller and a duct temperature sensor. Thermostats and dampers are not included in the kit. A variety of non-programmable and programmable thermostats are available to satisfy the homeowner’s personalized comfort needs. For AC only applications see ZONECC3ZAC01.STANDARD FEATURES

• 3-Zones of independent temperature control
• Duct temperature optimizer
• Leaving Air Temperature (LAT) Sensor included
• Operates heat pump or gas/electric equipment (not Hybrid Heat®compatible)
• Does not require field-installed transformer
• TimeGuard override
• Compressor protection
• Modulating damper control in emergency situations
• Four cycle limits per hour
• Damper fuse protection
• Compatible with programmable and non-programmable thermostats
• Diagnostic LEDs to verify system operation
• Emergency heat enabled from panel or thermostat
• High- and low-temperature limits
• Auto changeover from any zone
• RH and RC for voltage isolation
• Bypass setup routineAdvanced equipment protection
• Staging timer for energy savings
• Automatic checkout with installer mode
• Override zoning switch
• Timer override
• 5 dampers per zone
