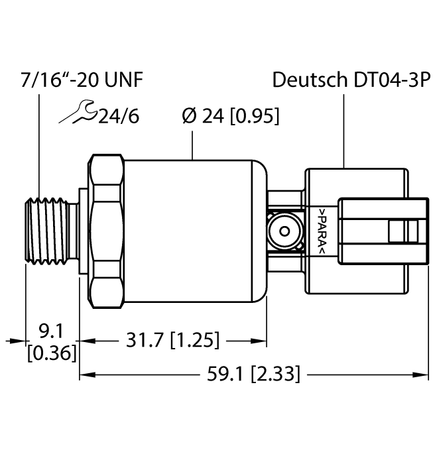

Turck PT1VR-1105-U6-DT043P
SKU: CS5390649MPN: PT1VR-1105-U6-DT043PAlternate Part #: 100033971UPC/EAN: 4047101585315
$235.26
UnitAvailable on backorder
Product Details
Pressure Transmitter
Ratiometric Output (3-Wire)
- For mobile hydraulic applications
- Ceramic measuring cell
- Compact and robust design
- Excellent EMC properties
- Excellent accuracy and long-term stability
- Complies with ISO 16750-2
- Pressure range -1…0 bar rel.
- 5 VDC ± 10 %
- Ratiometric output 10…90 %
- Process connection 7/16” UNF (SAE) male thread
- Plug-in device, Deutsch DT04-3P
Attributes
| Ambient Temperature | -40…+100 °C |
| Customs Tariff Number | 90262020000.0000 |
| Design | Without display |
| Ecl Ss Code V5 1 4 | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Electrical Connection | Connector, Deutsch DT04-3P |
| Electrical Output | Voltage output (3-wire) |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Medium Temperature | -40…+125 °C |
| Operating Voltage | 4.5…5.5 VDC |
| Pressure Range Bar | -1…0 bar |
| Pressure Range Psi | -14.5…0 psi |
| Pressure Transducer Material | Ceramic Al₂O₃ |
| Pressure Type | Relative pressure |
| Process Connection | 7/16″-20 UNF male thread |
| Protection Class | IP69K |
| Voltage Output | 0.5…4.5 V |
Specifications
| SKU | CS5390649 |
|---|---|
| MPN | PT1VR-1105-U6-DT043P |
| Alternate Part # | 100033971 |
| UPC/EAN | 4047101585315 |
You may also like

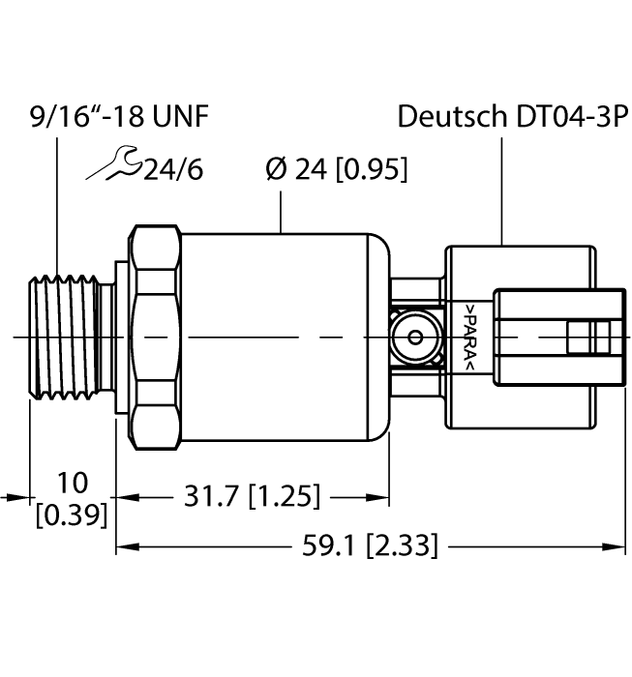

Turck PT1VR-1121-U6-DT043P
$235.26Unit
Turck PT1500PSIG-2121-U6-DT043P
$235.26Unit
Turck PT7500PSIG-2105-U6-DT043P
$235.26UnitTurck PT100R-2121-I2-DT043P
$235.26UnitTurck PT3000PSIG-2105-I2-DT043P
$235.26UnitTurck PT3000PSIG-2121-I2-DT043P
$235.26UnitTurck PT7500PSIG-2105-I2-DT043P
$235.26UnitTurck PT5000PSIG-2105-I2-DT043P
$235.26UnitTurck PT5000PSIG-2121-I2-DT043P
$235.26UnitTurck PT7500PSIG-2121-I2-DT043P
$235.26Unit
Turck PT500R-2021-U6-H1143/X
$235.26Unit

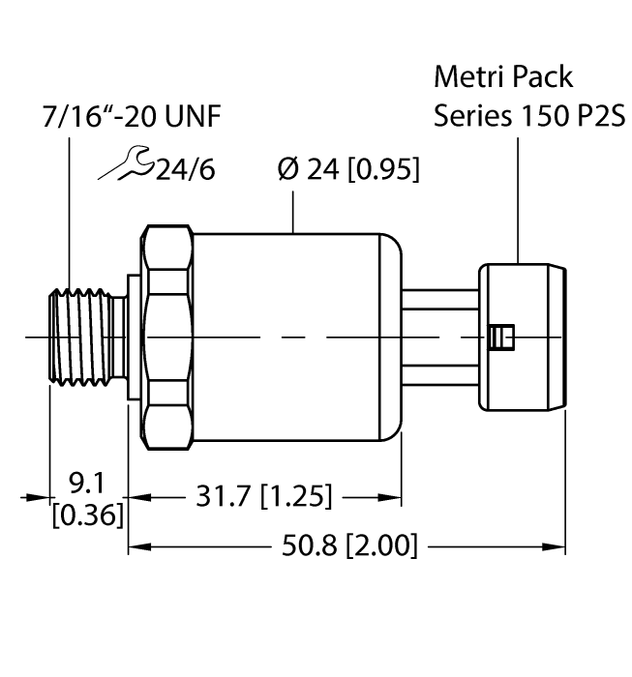

Turck PT300PSIG-1105-U3-MP11
