All ProductsTurck

Turck PT300PSIG-1105-U3-MP11

SKU: CS3831708MPN: PT300PSIG-1105-U3-MP11Alternate Part #: 100006158UPC/EAN: 4047101507607

100006158 - CER (ABS) , TRANSM, GEN., GE

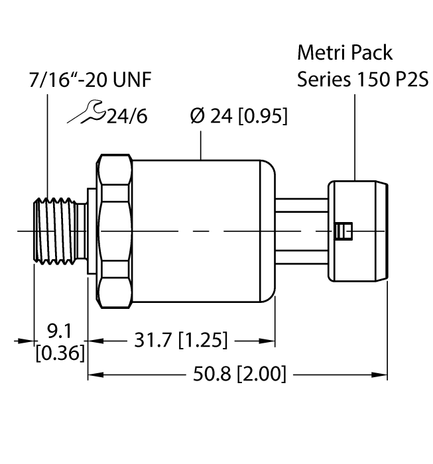

Turck PT300PSIG-1105-U3-MP11
$235.26
Unit
Available on backorder
remove
add

Product Details

Pressure Transmitter

With Voltage Output (3-Wire)

  • For mobile hydraulic applications
  • Ceramic measuring cell
  • Compact and robust design
  • Excellent EMC properties
  • Excellent accuracy and long-term stability
  • Complies with ISO 16750-2
  • Pressure range 0…300 psi rel.
  • 7…33 VDC
  • Analog output 0…5 V
  • Process connection 7/16” UNF (SAE) male thread
  • Plug-in device, Metri Pack 150 P2S series

Attributes

Ambient Temperature -40…+100 °C
Customs Tariff Number 90262020000.0000
Design Without display
Ecl Ss Code V5 1 4 27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Electrical Connection Connector, Metri Pack 150 P2S series
Electrical Output Voltage output (3-wire)
Housing Material Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Medium Temperature -40…+125 °C
Operating Voltage 7…33 VDC
Pressure Range Bar 0…20.68 bar
Pressure Range Psi 0…300 psi
Pressure Transducer Material Ceramic Al₂O₃
Pressure Type Relative pressure
Process Connection 7/16″-20 UNF male thread
Protection Class IP67
Voltage Output 0…5 V

Specifications

SKUCS3831708
MPNPT300PSIG-1105-U3-MP11
Alternate Part #100006158
UPC/EAN4047101507607
