All ProductsTurck

Turck BI2-EG08F-AG6X

SKU: CS5389866MPN: BI2-EG08F-AG6XAlternate Part #: 4614664

FERRITE, BARREL, DC, CABLE

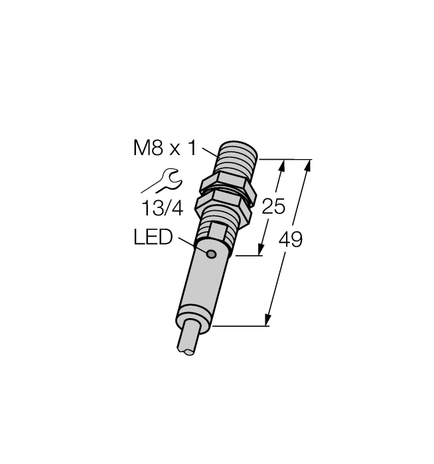

Turck BI1.5-EG08F-AG6X, BI1.5-EG08F-AN6X, BI1.5-EG08F-AP6X, BI2-EG08F-AG6X
Contact us for pricing and availability

Product Details

Inductive Sensor

Stainless Steel Front

  • Threaded barrel, M8 x 1
  • Stainless steel, 1.4305
  • DC 2-wire, 10…30 VDC
  • Polarized version
  • NO contact
  • Cable connection

Attributes

Ambient Temperature -10…+70 °C
Construction Size M8 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 2 mm
Special Feature All-metal sensor, Pressure resistant
Switching Frequency 0.20 kHz

Specifications

SKUCS5389866
MPNBI2-EG08F-AG6X
Alternate Part #4614664
