Turck BI1-EG05-AP6X-0.2-RS4T

SKU: CS5389858MPN: BI1-EG05-AP6X-0.2-RS4TAlternate Part #: 4609795UPC/EAN: 4047101596540

FERRITE, BARREL, DC, PIGTAIL M

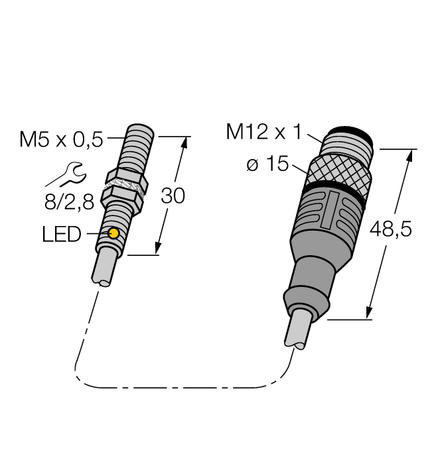

Turck BI1-EG05-AN6X-0.2-RS4T, BI1-EG05-AP6X-0.2-RS4T, BI1-EG05-Y1-0.2-RS4.21T
$206.94
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M5 x 0.5
  • Stainless steel, 1.4427 SO
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M12 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size M5 x 0.5
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Stainless steel, 1.4427 SO
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 1 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS5389858
MPNBI1-EG05-AP6X-0.2-RS4T
Alternate Part #4609795
UPC/EAN4047101596540
