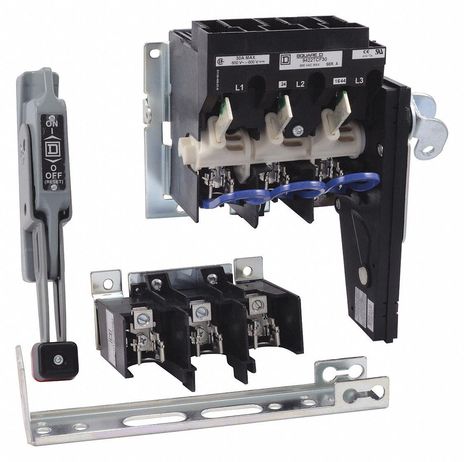

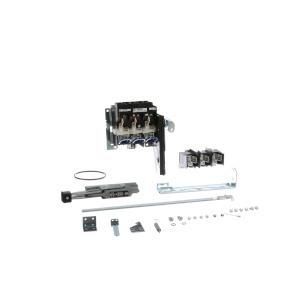

Square D 9422ATDF631

Operating mechanism, flange mounted, variable depth, 60A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

Operating mechanism, fuse switch, 60 A 600 VAC, 9422A1 handle

• Device short name: MX
• Range: 9422T
• Product: Disconnect Switch
• Disconnect Type: Fusible disconnect switch
• Mounting Type: Flange rod variable depth
• Current Rating: 60 A
• Horsepower Rating: 15 hp 200 V AC, 15 hp 230 V AC, 30 hp 460 V AC, 50 hp 575 V AC, 10 hp 250 V DC
• Fuse Rating: 60 A 600 V
• Handle Type: 6 in handle included NEMA ⅓/3R/4 enclosures sheet steel
