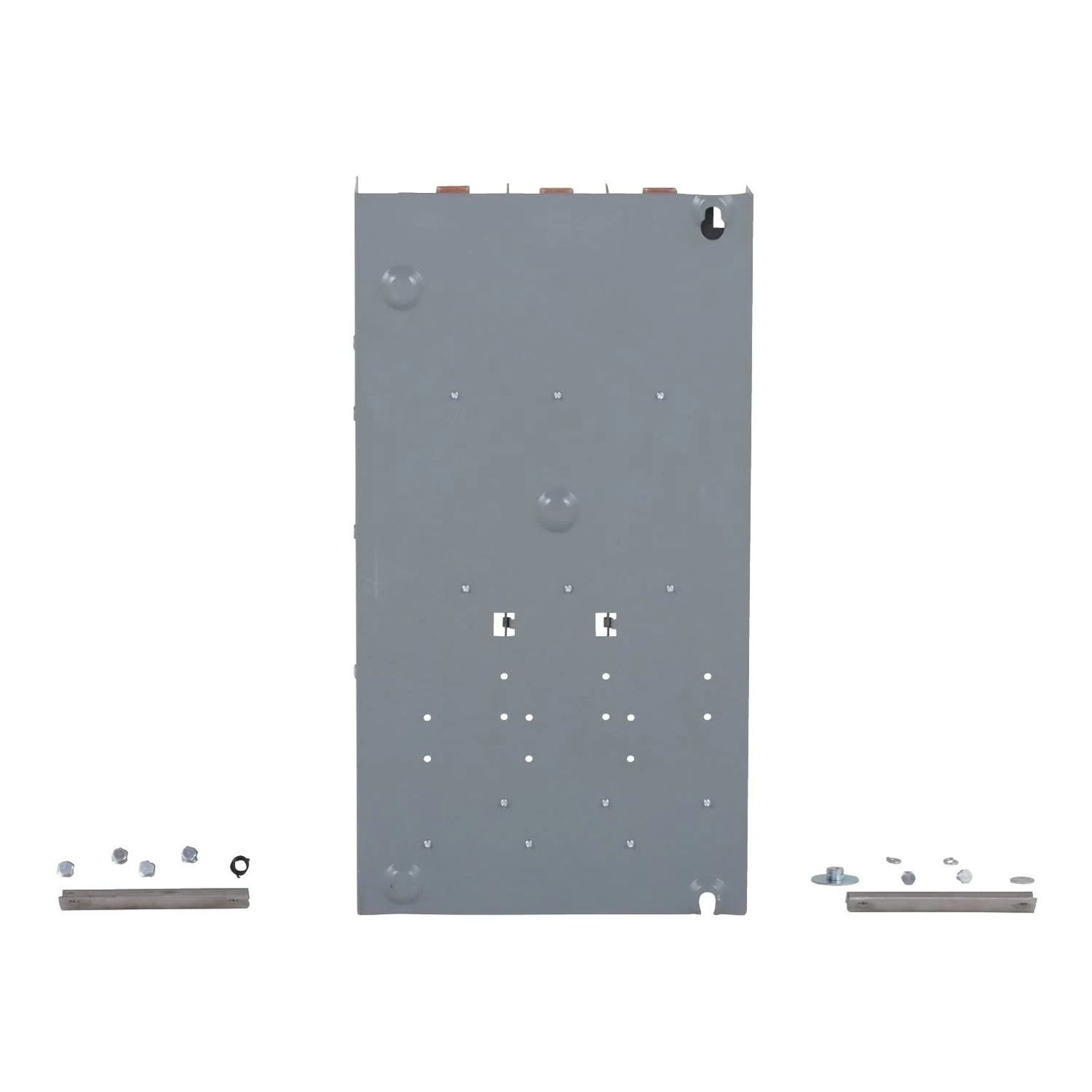

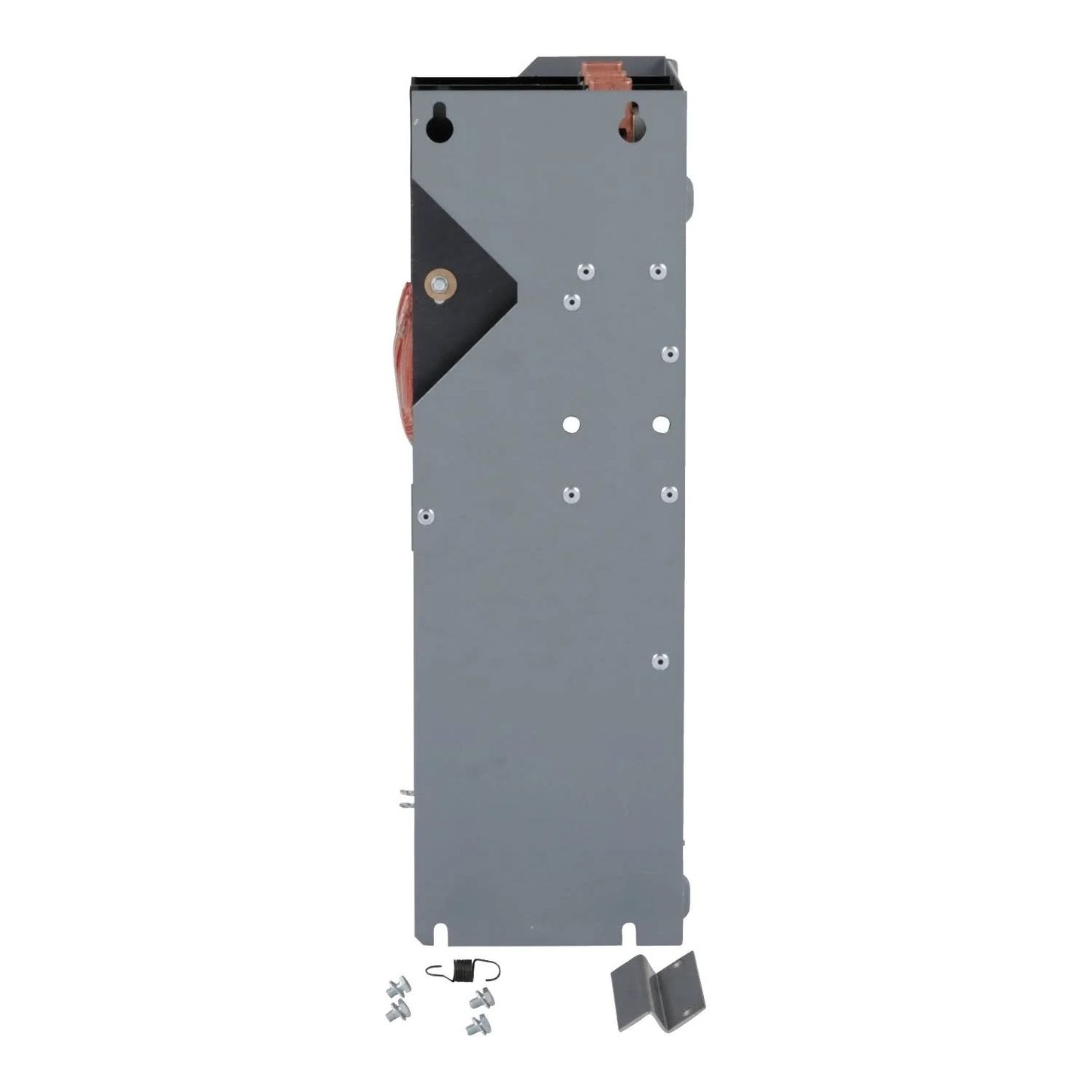

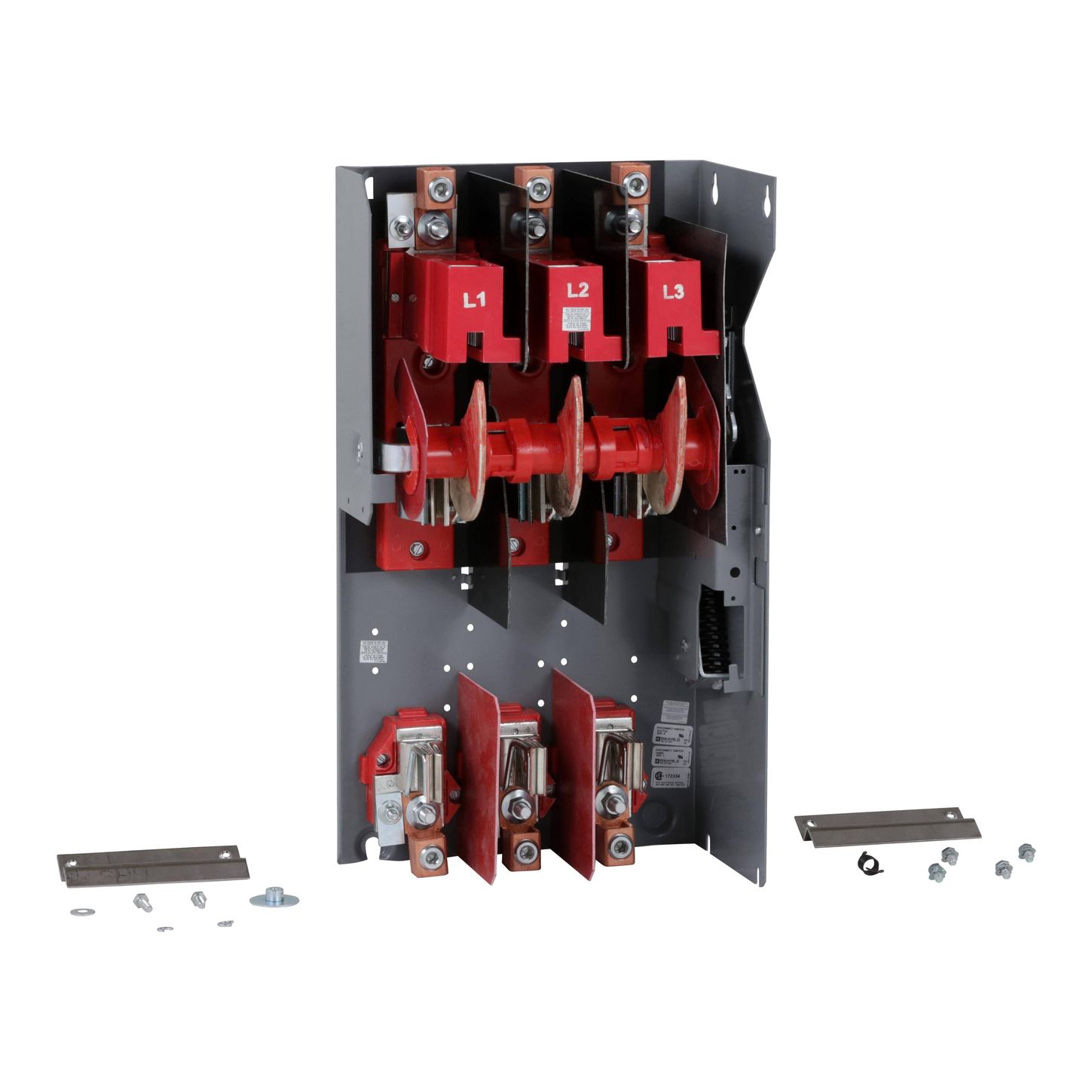

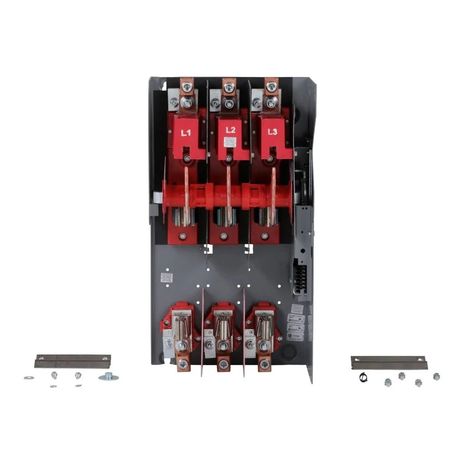

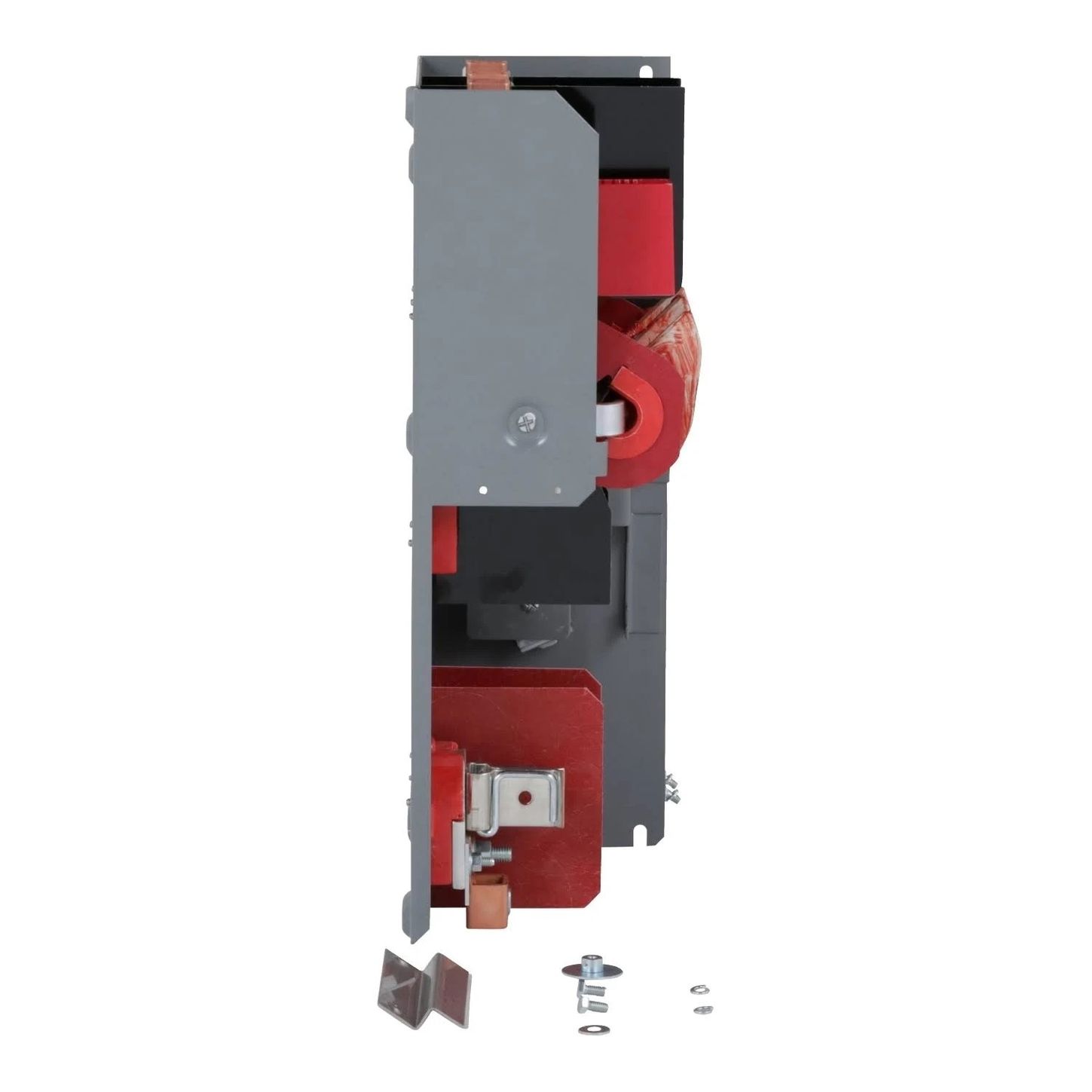

Square D 9422TG2

Operating mechanism, flange mounted, variable depth, 400A, 600V, H, K, J, R fuseholder, switch mechanism

9422T disconnect switches are designed for variable depth, flange mounting applications. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This 400 A disconnect switch will accept Class H, J, K or R fuses only. This 400 A disconnect switch is designed for right flange mounting. The variable depth mounting range is 15.87 to 19.0 inches, in increments of 0.63 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC max when using two poles. 9422A operating handles must be purchased separately. Disconnect switch lugs are rated for #4 to 500 Kcmil with copper wire. Switch is UL component recognized and CSA certified.
