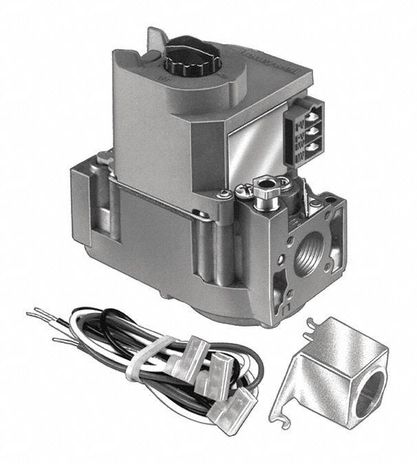

Resideo VR4304M4519

Single Stage Gas Controls for Intermittent Pilot appliance, ¾ in x ¾ in, Standard Opening, 120 V AC, Natural Gas/LP with included conversion kit

Product Overview:

• Combination gas control for use in 120 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh

Product Features:

• Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
• Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules
• Compact size
• Provide two automatic valves
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
• Meets codes requiring dual safety shutoff
• Standard and slow opening natural gas models include natural to LP gas conversion kit; LP to natural gas conversion kit also available
• All adjustments, wiring connections and pilot outlet are accessible from top of control
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
• Compatible with ECO connector
• ON-OFF lighting sequence

Product Specifications:

• Description: 120 Vac Dual Intermittent Pilot Gas Valve with ¾ in. x ¾ in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Type of Gas: Natural
• Inlet/Outlet Size (in.): ¾ in. x ¾ in.
• Body Pattern: Straight-through
• Opening Characteristics (standard, step): Standard
• Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Pressure Regulator Setting (psi): 3.5 in. wc
• Pressure Regulator Setting (kPa): 0.87 kPa
• Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing
• Pressure Tapping: ⅛ in. NPT with plug
• Electrical Connections: ¼ in. quick-connect male terminals
• Electrical Ratings: 120 Vac
• Frequency: 60 Hz
• Anticipator Setting: 0.1 A
• Temperature Range (F): -40 F to +175 F
• Temperature Range (C): -40 C to +79 C
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Dimensions (in.): 5 ⅜ in. high x 4 1/16 in. wide x 2 11/16 in. deep
• Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
• Includes: Two ¾ x ½ in. reducer bushings, natural to LP Conversion Kit, one ½” x ⅜” reducer bushing
• Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007; CGA Design Certified: File No. L2025007
