Eaton E49S71-20

Name: Eaton E49S71-20
Brand: Eaton
SKU: CS515891
Price: 66.32 USD
Availability: OutOfStock

SKU: CS515891MPN: E49S71-20Alternate Part #s: E49S71-20EAT-E49S71-20UPC/EAN: 782113552804

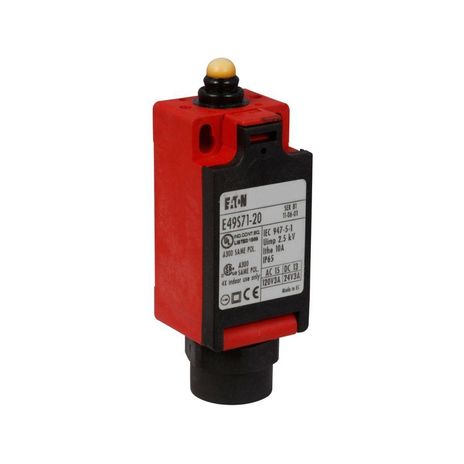

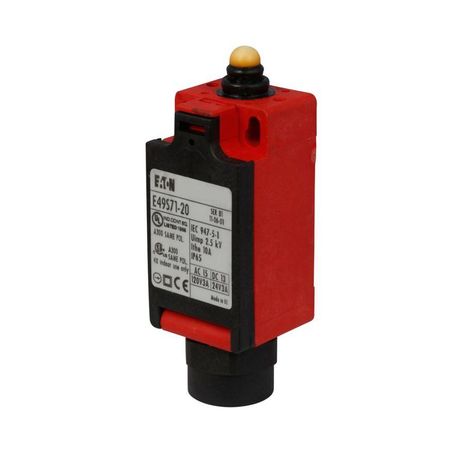

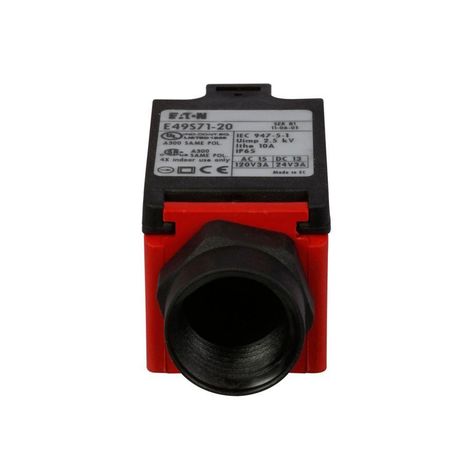

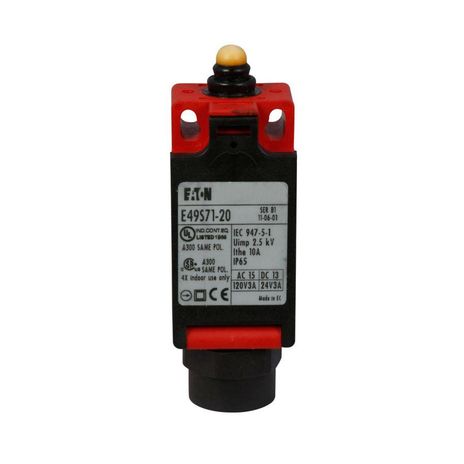

Eaton E49 compact metal limit switch

Product Details

E49 Miniature DIN Limit Switch, Plastic Body, Self-extinguishing PA-6 (Glass reinforced, Polyamide) enclosure, 10A max AC, 1.5A max DC, 1NO-1NC, 10A at 600Vac, 1.5A at 24Vdc, Screw Terminals

Attributes

Connection	Screw terminal
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 600Vac, 1.5A at 24Vdc
Enclosure Material	Self-extinguishing PA-6 (glass-reinforced, polyamide)
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6P, NEMA 13, IP65
Maximum Ac Current	10 A
Maximum Dc Current	1.5 A
Operating Temperature Max	176 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-22 FAH
Operating Temperature Min Uom	FAH
