Eaton 1450B-6507

Name: Eaton 1450B-6507
Brand: Eaton
SKU: CS513450
Price: 681.53 USD
Availability: OutOfStock

SKU: CS513450MPN: 1450B-6507Alternate Part #s: 1450B-6507EAT-1450B-6507UPC/EAN: 782113824710

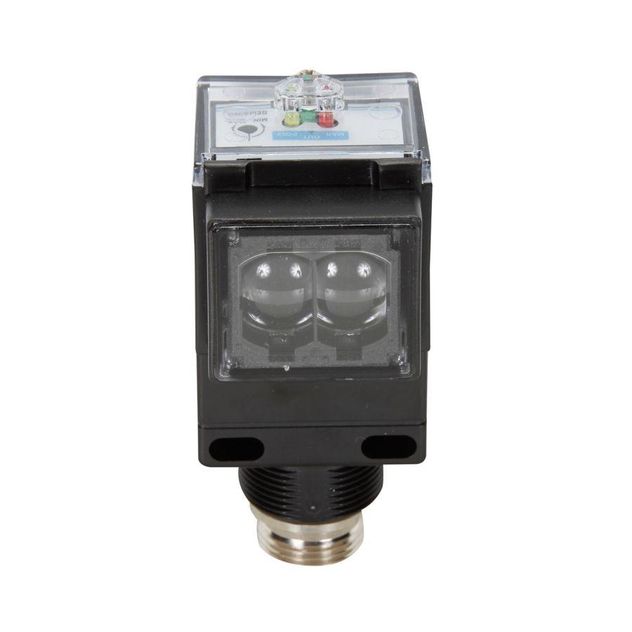

Eaton 50 series photoelectric sensor

Eaton 1150E-6507, 1150E-6513-9M, 1150E-6534, 1150E-6543, 1150ES4060, 1151E-6534, 1250B-6501, 1250B-6502, 1250B-6507, 1250B-6511, 1250B-6512, 1250BS9352, 1250E-6533, 1250E-6534, 1250E-6537

Product Details

Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor dist. 30 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 4 Pin Dual Key Micro Connector, 10-30 Vdc input, Non Polarized Retroreflective

Attributes

Connection	4-pin dual key micro connector
Contact Configuration	NPN and PNP open collector
Contact Rating	250 mA at 30 Vdc
Enclosure Material	Lens: nylon Body: noryl
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	250 mA
Operating Mode	Non polarized retroreflective
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity
Sensor Type	Retroreflective
Switch Type	Photoelectric
