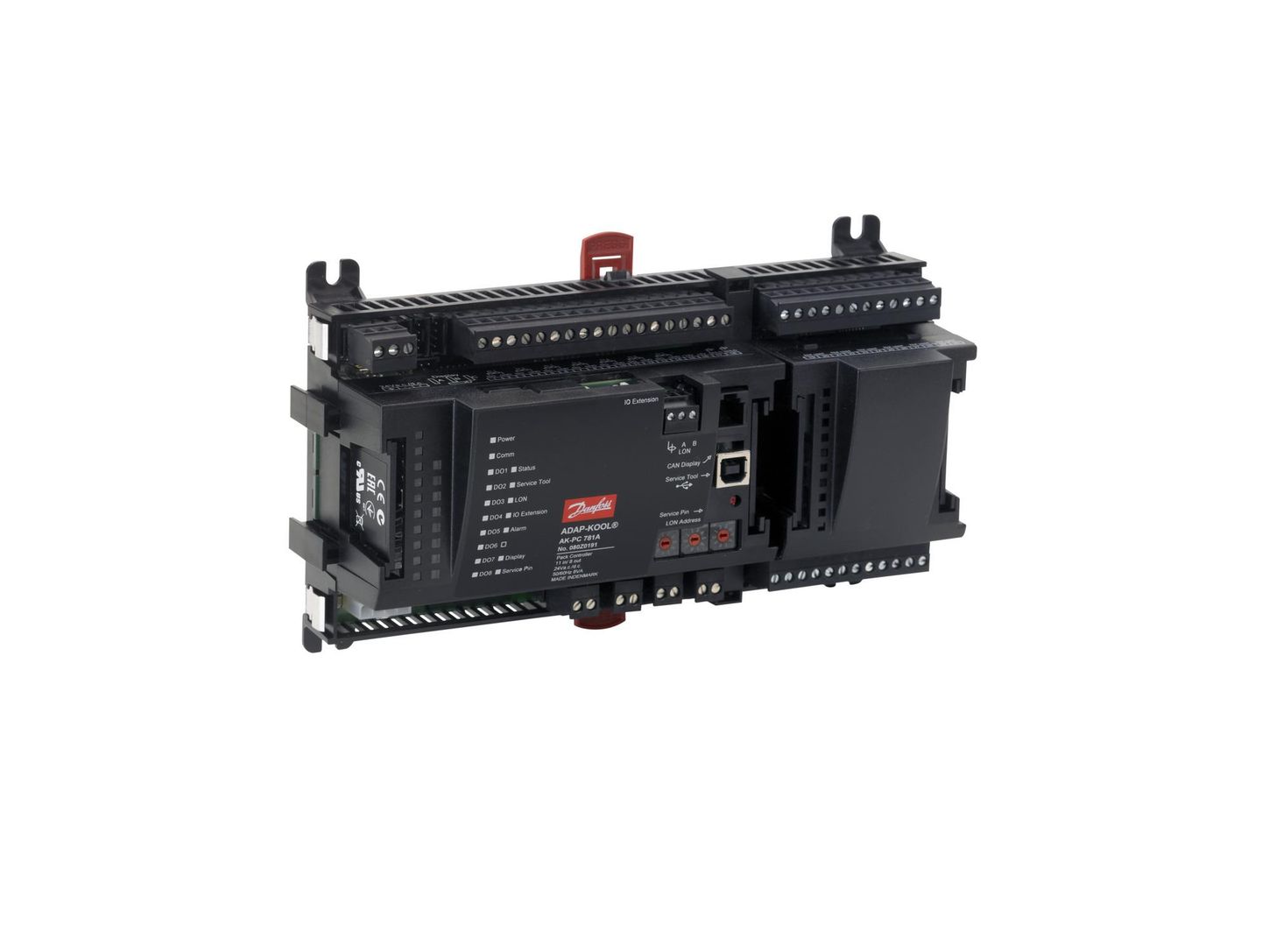

Danfoss 080Z0191

Name: Danfoss 080Z0191
Brand: Danfoss
SKU: CS5083613
Availability: OutOfStock

SKU: CS5083613MPN: 080Z0191

Pack controller, AK-PC 781A

Product Details

Function: Pack w. Heat Reclaim, Supply voltage [V] AC: 24, Communication type: IO Extension; RJ11 (CAN) to Display; LON RS485; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1

Attributes

Addit Press Switche Inputs Max	5 pc
Addit Thermostats Inputs Max	5 pc
Additional Alarm Inputs Max	10 pc
Additional Analog Inputs Max	5 pc
Analog Inputs Ai Pc	11 pc
Application Area	Capacity control
Approval	C-TICK
Capacity Control Input	Pressure/ Temperature
Capacity Control Mode	PI
China Rohs Compliance	Out of scope
Communication Type	IO Extension
Compressor Capacity Mode	Step/ Speed
Condenser Control Type	Pressure/ Temperature
Controller Type	Pack Controller
Digital Outputs Do Pc	8 pc
Display On Front	No
Display Option	EKA 163B
Enclosure Rating Ip	IP10
Eu Rohs Compliance	Out of scope
Fan Capacity Control	Step/ Speed
Fan Control Mode	PI
Frequency Hz	50/60 Hz
Function	Pack w. Heat Reclaim
Further Information	Transcri.,Speed,CO2,HP,Oil,HR
I O Connectors Max	120 pc
No Of Compr Safty Signals Max	6 pc
No Of Extention Modules Max	11 pc
Number Of Compressors Max	10 pc
Number Of Fans Max	8 pc
Oil Management	Yes, with CO2
Other Rohs Documentation	EAEU RoHS
Packing Format	Single pack
Power Consumption Va	8 VA
Product Accessories	Electron. control accessories
Product Features	CO2 compliant
Product Group	Compressor/condenser control
Product Language	Chinese
Product Name Description	Pack controller
Programming Tools	AK-ST 500
Quantity Per Packing Format	1 pc
Reach Candidate List Substances	No
Serviceable	No
Supply Voltage V Ac	24 V
Supply Voltage V Dc	24 V
Type	AK-PC 781A
Uk Rohs Compliance	Out of scope
Volume	6.248 Liter
