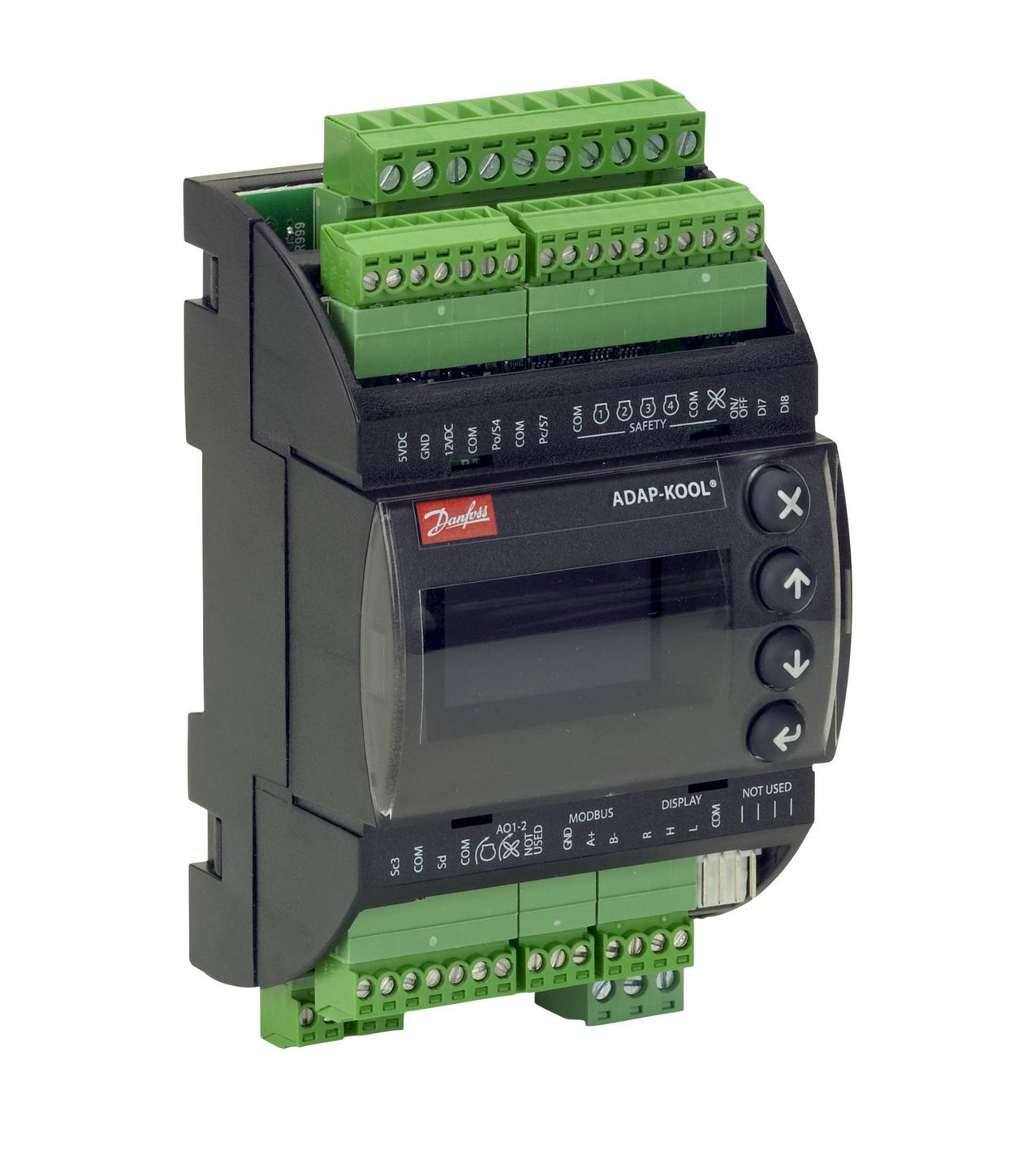

Danfoss 080G0289

Name: Danfoss 080G0289
Brand: Danfoss
SKU: CS5083498
Availability: OutOfStock

SKU: CS5083498MPN: 080G0289

Pack controller, AK-PC 351

Product Details

Function: 1 Suction and 1 Condenser, Digital inputs (DI) [pc]: 8, Supply voltage [V] AC: 24, Communication type: MODBUS, Packing format: Multi pack, Quantity per packing format: 16

Attributes

Analog Inputs Ai Pc	4 pc
Analog Outputs Ao Pc	2 pc
Application Area	Capacity control
Approval	CE
Battery Qty	1
Battery Type Or Name	Lithium coin cell
Capacity Control Input	Pressure/ Temperature
Capacity Control Mode	PI
China Rohs Compliance	Out of scope
Communication Type	MODBUS
Compressor Capacity Mode	Step/ Speed/ PWM
Condenser Control Type	Pressure/ Temperature
Digital Inputs Di Pc	8 pc
Digital Outputs Do Pc	6 pc
Display On Front	Yes
Equipment	Incl. Connectors
Eu Rohs Compliance	Out of scope
Fan Capacity Control	Step/ Speed
Fan Control Mode	PI
Frequency Hz	50/60 Hz
Function	1 Suction and 1 Condenser
Further Information	Relay 6 solid state type
In Scope Of Weee And Contain Batteries	Yes
Mounting Method	DIN rail
Number Of Compressors Max	4 pc
Other Rohs Documentation	EAEU RoHS
Packing Format	Multi pack
Power Consumption W	6 W
Product Accessories	Electron. control accessories
Product Features	Compressor safety
Product Group	Compressor/condenser control
Product Language	Croatian
Product Name Description	Pack controller
Quantity Per Packing Format	16 pc
Reach Candidate List Substances	No
Serviceable	No
Supply Voltage V Ac	24 V
Supply Voltage V Dc	24 V
Type	AK-PC 351
Type Designation	AK-PC 351
Uk Rohs Compliance	Out of scope
Volume	1.867 Liter
