Eaton 259648

Name: Eaton 259648
Brand: Eaton
SKU: CS5021052
Price: 533.67 USD
Availability: OutOfStock

SKU: CS5021052MPN: 259648UPC/EAN: 04015082596484

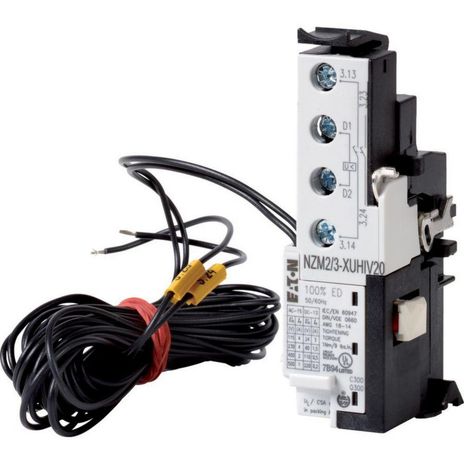

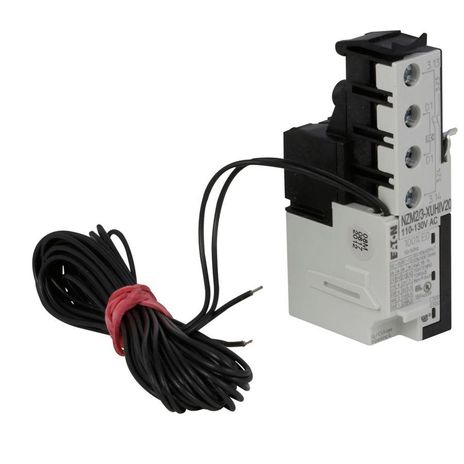

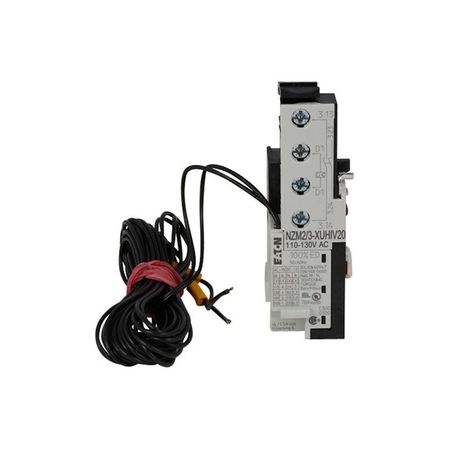

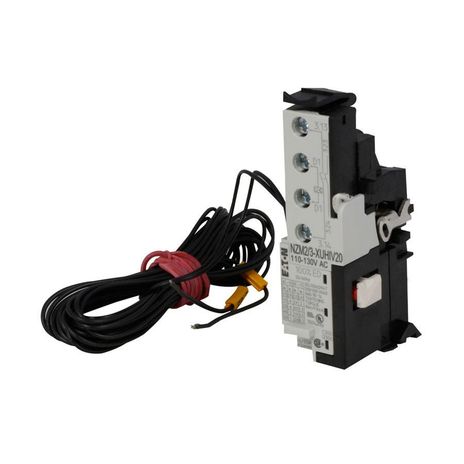

Eaton Moeller series NZM release

$533.67

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton Moeller series NZM - Molded Case Circuit Breaker. Undervoltage release, 110-130VAC, +2early N/O, 2, /3, 20

Attributes

10 10 Temperature Rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance	Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures	Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat	Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects	Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation	Meets the product standard’s requirements.
10 2 5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact	Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions	Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances	Meets the product standard’s requirements.
10 5 Protection Against Electric Shock	Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components	Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections	Is the panel builder’s responsibility.
10 8 Connections For External Conductors	Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength	Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage	Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material	Is the panel builder’s responsibility.
Connection	Screw
Connection Type	Contacts 3.23 and 3.24 with separate 3 m connection cables
Drop Out Voltage Of Undervoltage Release Ac Dc Max	0.7 x Us
Drop Out Voltage Of Undervoltage Release Ac Dc Min	0.35 x Us
Electric Connection Type	Screw connection
Fitted With	Two separate early-make auxiliary contacts
Frame	NZM⅔
Minimum Command Time Max	15 C26
Minimum Command Time Max Uom	C26
Minimum Command Time Min	10 C26
Minimum Command Time Min Uom	C26
Number Of Contacts Change Over Contacts	0.0000
Number Of Contacts Normally Closed Contacts	0.0000
Number Of Contacts Normally Open Contacts	2.0000
Pick Up Power Consumption At Ac Undervoltage Release	1.5 D46
Pick Up Power Consumption At Ac Undervoltage Release Uom	D46
Pick Up Power Consumption At Dc Undervoltage Release	0.8 WTT
Pick Up Power Consumption At Dc Undervoltage Release Uom	WTT
Power Consumption	1.5 VA (sealing AC) 0.8 W (sealing DC)
Rated Control Supply Voltage	110 - 130 V 50/60 Hz
Rated Control Supply Voltage Us At Ac 50 Hz Max	130 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	110 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	130 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	110 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	0 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	0 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Control Voltage Relay Contacts	110 V AC 130 V AC
Reaction Time	19 C26
Reaction Time Uom	C26
Special Features	Undervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits. For use with emergency-stop devices in connection with an emergency-stop button. When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on. Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 ms Cannot be used in conjunction with NZM…-XR… remote operator. Undervoltage releases cannot be installed simultaneously with NZM…-XHIV… early-make auxiliary contact or NZM…-XA… shunt release.
Suitable For	Off-load switch
Terminal Capacity Solid Flexible Conductor	18 - 14 AWG (1x) for undervoltage releases, off-delayed 0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule 18 - 14 AWG (2x) at shunt release 18 - 14 AWG (2x) for undervoltage releases, off-delayed 0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule 18 - 14 AWG (1x) at shunt release 0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule 0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
Type	Accessory Undervoltage release with early-make auxiliary contact
Undelayed Short Circuit Release Max	0 AMP
Undelayed Short Circuit Release Max Uom	AMP
Undelayed Short Circuit Release Min	0 AMP
Undelayed Short Circuit Release Min Uom	AMP
Used With	NZM3(-4), N(S)3(-4) NZM2(-4), N(S)2(-4)
Voltage Tolerance Max	1.1000000238419
Voltage Tolerance Min	0.85000002384186
Voltage Type	AC
