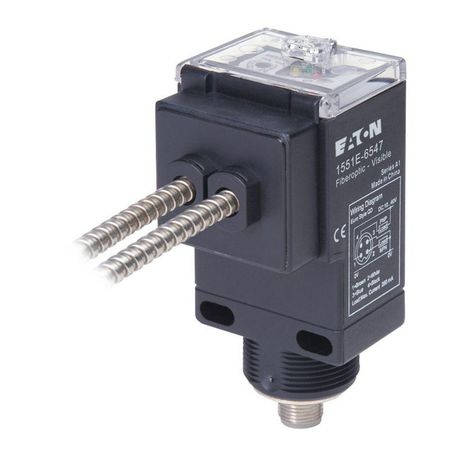

Eaton 1551E-6547

Name: Eaton 1551E-6547
Brand: Eaton
SKU: CS5019699
Price: 388.53 USD
Availability: OutOfStock

SKU: CS5019699MPN: 1551E-6547UPC/EAN: 782116112159

Eaton Enhanced 50 photoelectric sensor

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, dist. depends on the fiberoptic cables, short circuit and overload, Visible Red, 250 mA max DC, NPN and PNP Open Collector, 250 mA at 40 Vdc, 4 Pin M12 Connector, 10-40 Vdc input

Attributes

Connection	4-pin M12 connector
Contact Configuration	NPN and PNP open collector
Contact Rating	250 mA at 40 Vdc
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	10-40 Vdc
Led Indicator	Output status: green Power on: yellow Marginal gain: red
Maximum Dc Current	250 mA
Operating Mode	Visible red Fiber-optic
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity and short circuit protected
Sensor Type	Fiberoptic
Switch Type	Photoelectric
