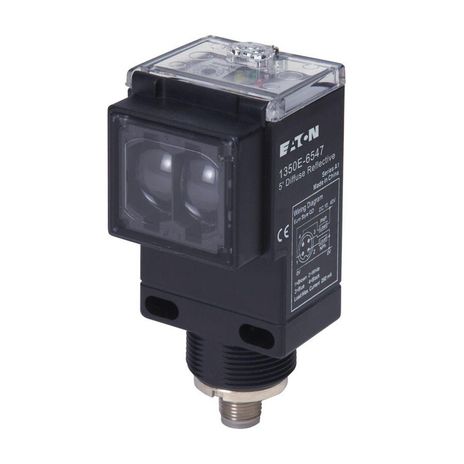

Eaton 1350E-6547
SKU: CS5018924MPN: 1350E-6547UPC/EAN: 782116111497
Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Photoelectric Sensor, Diffuse Reflective, 5 ft range, Forward Viewing, Output (green), power (yellow), alignment (red), M12, 250 mA at 10-40 Vdc, 4 pin, NPN/PNP open collector outputs, 10-40 Vdc
Attributes
| Connection | M12 |
| Contact Configuration | NPN/PNP open collector |
| Contact Rating | 250 mA at 10-40 Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 10-40 Vdc |
| Led Indicator | Output: green Power: yellow Alignment: red |
| Maximum Dc Current | 250 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Output short circuit, overcircuit and reverse polarity |
| Sensor Type | Diffuse reflective |
Specifications
| SKU | CS5018924 |
|---|---|
| MPN | 1350E-6547 |
| UPC/EAN | 782116111497 |
