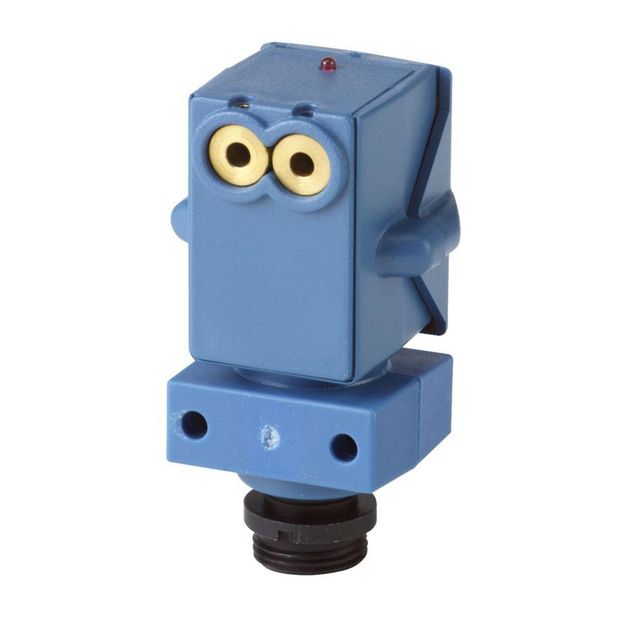

Eaton 1550B-6501

Name: Eaton 1550B-6501
Brand: Eaton
SKU: CS5019662
Price: 889.93 USD
Availability: OutOfStock

SKU: CS5019662MPN: 1550B-6501UPC/EAN: 782113825595

Eaton 50 series photoelectric sensor

Eaton 1150E-6507, 1150E-6513-9M, 1150E-6534, 1150E-6543, 1150ES4060, 1151E-6534, 1250B-6501, 1250B-6502, 1250B-6507, 1250B-6511, 1250B-6512, 1250BS9352, 1250E-6533, 1250E-6534, 1250E-6537

Product Details

Eaton 50 Series Photoelectric Sensor, Right Angle, Sensor distance: Depends on the fiberoptic cables used, Body: Noryl, Lens: Nylon encl, Depends on Output Device max AC/DC, 5 Pin Mini Connector, 90-132 Vac input, Fiberoptic, Infrared

Attributes

Connection	5-pin mini connector
Contact Configuration	Depends on output device
Contact Rating	Depends on Output Device
Enclosure Material	Lens: nylon Body: noryl
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage	90-132 Vac
Led Indicator	Output status: red
Maximum Ac Current	Depends on output device
Maximum Dc Current	Depends on output device
Operating Mode	Fiber-optic Infrared
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Fiberoptic
Switch Type	Photoelectric
