Eaton 1550B-6517

Name: Eaton 1550B-6517
Brand: Eaton
SKU: CS5019667
Price: 807.42 USD
Availability: OutOfStock

SKU: CS5019667MPN: 1550B-6517UPC/EAN: 782113825649

Eaton 50 series photoelectric sensor

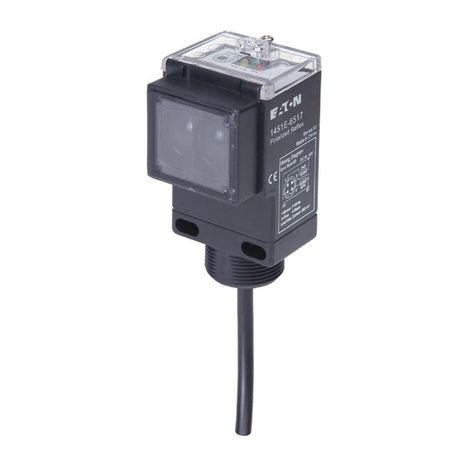

Eaton 1451E-6517, 1452E-6517, 1456A-6517, 1550B-6517, 1550E-6517

Product Details

Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: Depends on the fiberoptic cables used, 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, Fiberoptic

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NPN and PNP open collector
Contact Rating	250 mA at 30 Vdc
Enclosure Material	Body: noryl Lens: nylon
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	250 mA
Operating Mode	Fiber-optic Infrared
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity
Sensor Type	Fiberoptic
Switch Type	Photoelectric
